Stainless Steel Shaft Screw Conveyor Wastewater Bar Screen For Material Handing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Supply Ability: | 20 pcs per month |
|
Detail Information |
|||
| Product Name: | Shaft Screw Conveyor | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS | Standard: | ISO |
| Structure: | Compact Connection | ||
| High Light: | water purification screening,rotary bar screen |
||
Product Description

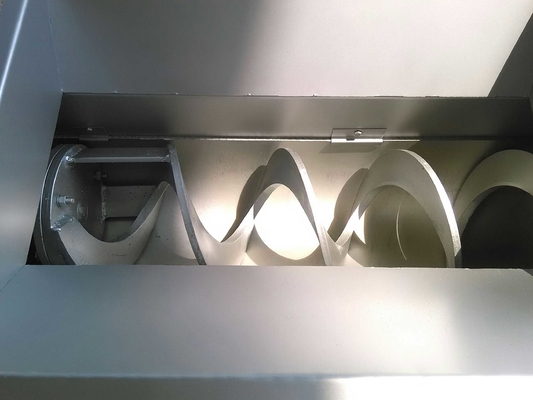

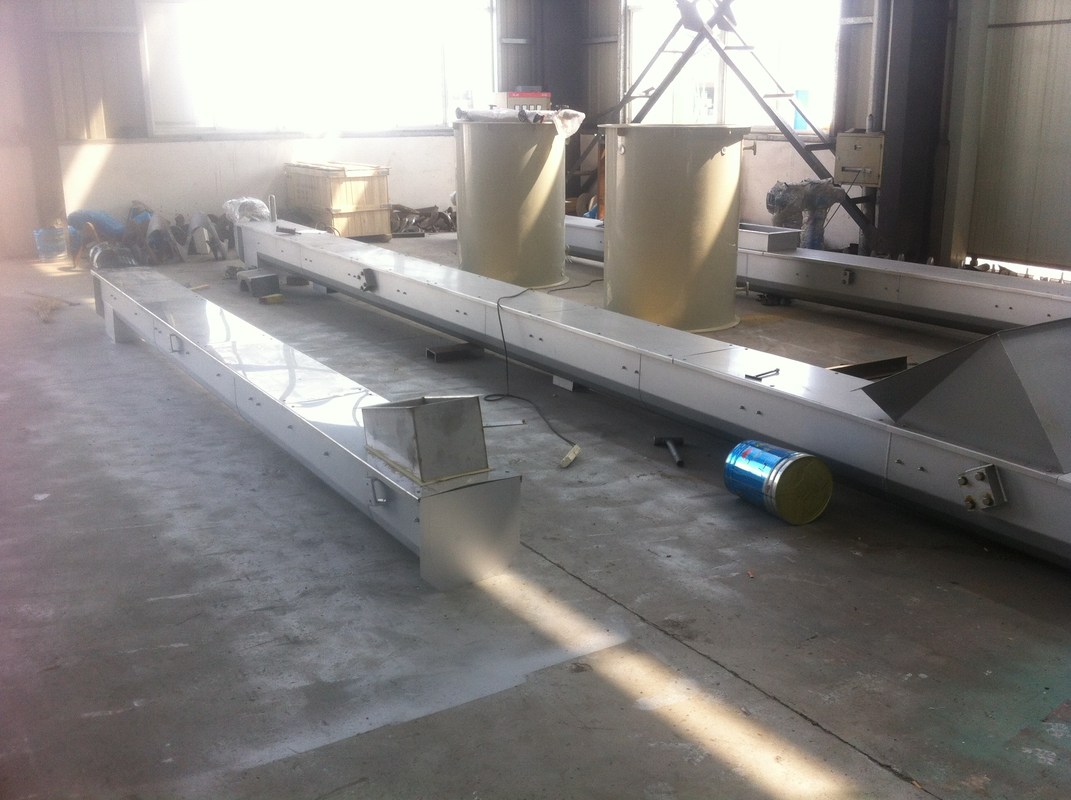

Stainless steel shaft screw conveyor for material handing equipment
Application
■ It is applied to process the grille slags from urban sewage treatment plants, pre-treatment devices in residential communities, municipal rain/sewage pump stations and water works, and mainly used together with grille or dewaterer and other supporting equipment to transport grille slags or dewatered sludge.
Advantages
■ Adopt the continuous rolling spiral blades;
■ Adopt the spiral blades with unilateral-layer, bilateral-layer and triple-layer structures in accordance with the transport volumes;
■ Optional materials for blades: low alloy steel, stainless steel; and the material for liner: UHMW PE;
■ The aggregate month can be customized in accordance with customer demands;
| Model | CLS260 | CLS320 | CLS360 | CLS420 | CLS500 | |
| Nominal Slot Breadth (mm) | 260 | 320 | 360 | 420 | 500 | |
| Spiral Diameter (mm) | 220 | 280 | 320 | 380 | 460 | |
| Transport Capacity (m3/h) | 0° | 3.5 | 9 | 11.5 | 15 | 25 |
| 15° | 2.5 | 6.5 | 7.8 | 11 | 20 | |
| 30° | 1.5 | 4.1 | 5.5 | 7.5 | 12.5 | |
| The Suggested Maximum Transport Length (m) | 10 | 18 | 20 | 20 | 25 | |
