CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CMS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Drum Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 8-912m³/h | Structure: | Compact Connection |
| High Light: | water purification screening,rotary bar screen |
||
Product Description

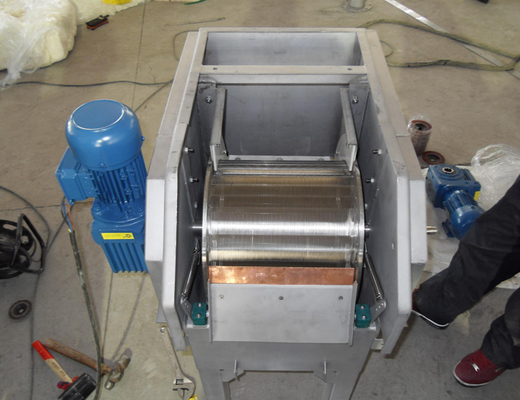

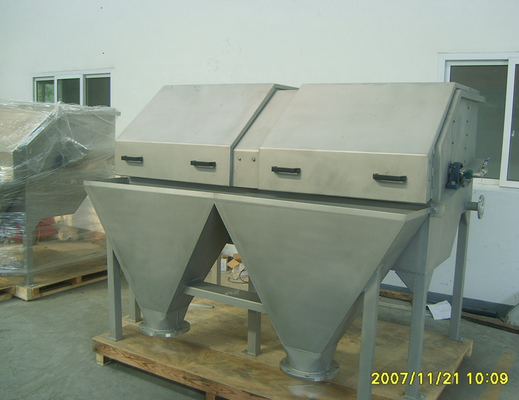

CMS model drum screen/Drum type microfiltration machine
Application
Mainly used in sewage pretreatment and industrial filtration,can greatly reduce treatment load of subsequent process.It can reduce30-60%or organic and inorganic suspended solid.
Advantage
- Equipment use wedge grid as filter component,easy for liquid to get through,and not easy blocked.
- Equipment use stainless steel grid,can be used for high temp and concentration liquid filtration.
- Equipment use the drum design,having big filter area,so in the same treatment capacity,it has compact structure,small footprint,low power consumption.
- Equipment use backwash nozzle to clean the blocked scum between the grid,manwal or automatic for the backwash can be the options.
- Equipment can operate automatically and continuously,and can remove the scum automatically,high degree of automation.
- Equipment use fully enclosed design,which can avoid secondary pollution when it is operating.
| Model | CMS | CMS | CMS | CMS | CMS | CMS | CMS | CMS | CMS | |
| Gap | 3/300 | 6/400 | 6/700 | 6/1000 | 6/1300 | 6/1600 | 6/2000 | 8/2000 | 8/2500 | |
| 0.50mm | Papermaking | 6 | 20 | 40 | 60 | 80 | 100 | 130 | 190 | 225 |
| Slaughter process | 4 | 15 | 30 | 45 | 60 | 75 | 95 | 130 | 160 | |
| 0.75mm | Seafood process | 5 | 17 | 35 | 50 | 70 | 90 | 110 | 140 | 170 |
| Meat food process | 6 | 20.5 | 40 | 60 | 80 | 100 | 130 | 190 | 240 | |
| 1.00mm | Meat food process | 7.5 | 25 | 50 | 75 | 100 | 125 | 150 | 220 | 240 |
| Vegetable food process | 12 | 40 | 75 | 100 | 150 | 180 | 220 | 330 | 400 |
| Model | CMS | CMS | CMS | CMS | CMS | CMS | CMS | CMS | CMS | |||||||||||
| Parameter | 3/300 | 6/400 | 6/700 | 6/1000 | 6/1300 | 6/1600 | 6/2000 | 8/2000 | 8/2500 | |||||||||||
| Drum size(mm) | Φ325*300 | As:CMS6/400 Spec:Φ610*400 | Φ800*2000 | Φ800*2500 | ||||||||||||||||
| Motor power(kw) | 0.18 | 0.37 | 0.55 | 0.75 | 1.1 | |||||||||||||||
| Drum rotate speed(rpm) | 16 | 10-11 | 8-9 | |||||||||||||||||
| Equipment length(mm) | 860 | 990 | 1290 | 1590 | 1890 | 2190 | 2590 | 2590 | 3090 | |||||||||||
| Equipment width(mm) | 830 | 1290 | 1510 | |||||||||||||||||
| Equipment height(mm) | 1055 | 1600 | 1700 | 1950 | ||||||||||||||||
| Ground level of the outlet water | 350 | 500 | 600 | 650 | ||||||||||||||||
| Inlet pipe diameter(mm) | DN65 | DN100 | DN150 | DN150 | DN200 | DN200 | DN250 | DN300 | DN400 | |||||||||||
| Outlet pipe diameter(mm) | DN100 | DN150 | DN200 | DN200 | DN250 | DN300 | DN250*2 | DN300*2 | ||||||||||||
| Drain pipe diameter(mm) | DN50 | |||||||||||||||||||
