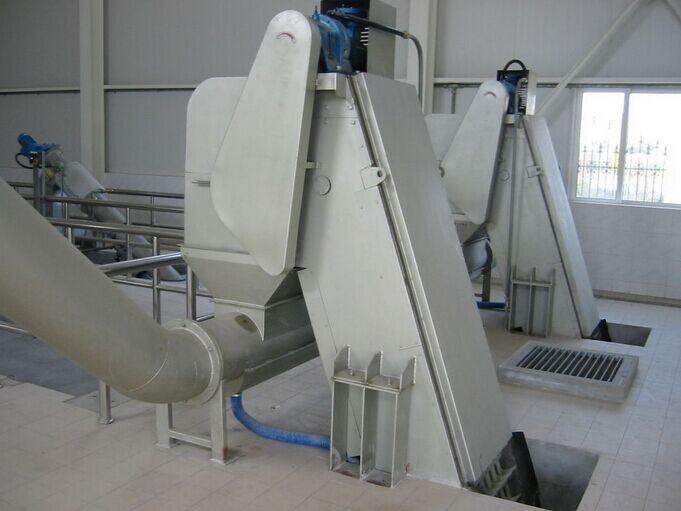

Municipal sewage and Wastewater Bar Screen / mechanically cleaned bar screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CFH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 pcs per month |
|
Detail Information |
|||
| Product Name: | Bar Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Structure: | Compact Connection | ||
| High Light: | water purification screening,solid liquid separation equipment |
||
Product Description
Introduction of mechanical grille:

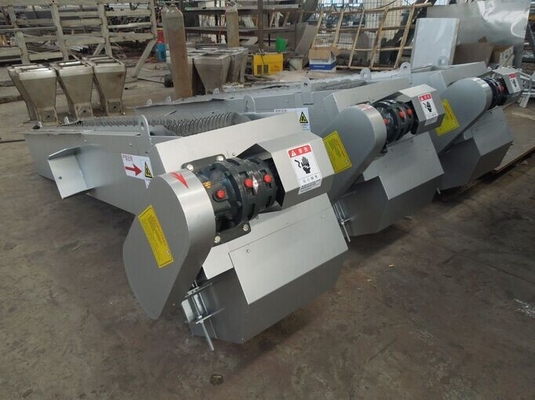

Self-cleaning screen waste remover is composed of main frame, driving device, tooth harrow and transmission chains. Teeth with ABS, nylon 6, nylon 1010 or stainless steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the top guided by rail and wheel. And brush will clean the residue on teeth.
It is installed at water inlet of secondary grill and other water intake units where no large particles are in water.It is also can be used for industrial and municipal sewage of industries such as paper mill,textile, leather,wine and suggar making,fishing etc.
It is suitable for usage at premier and secondary fence of water inlet of water intake units.
Applications:
1. Municipal sewage treatment
2. Abattoirs
3. Cheese processing
4. Container washing
5. Dairies
6. Food processing
7. Fish processing
8. Metal removal
9. Meat industry
10. Poultry processing
11. Pulp& paper
12. Small goods
13. Tanneries
14. Vegetable industries
Specifications:
|
Model |
Motor power (kw) |
Screen width (mm) |
Channel depth (mm) |
|
|
CFH-300 |
0.37~0.55 |
300 |
400 |
|
|
CFH-400 |
400 |
500 |
||
|
CFH-500 |
0.55~1.1 |
500 |
600 |
|
|
CFH-600 |
600 |
700 |
||
|
CFH-700 |
700 |
800 |
||
|
CFH-800 |
0.75~1.5 |
800 |
900 |
|
|
CFH-900 |
900 |
1000 |
||
|
CFH-1000 |
1000 |
1100 |
||
|
CFH-1100 |
1.1~2.2 |
1100 |
1200 |
|
|
CFH-1200 |
1200 |
1300 |
|
|
|
CFH-1300 |
1.5~3.0 |
1300 |
1400 |
|
|
CFH-1400 |
1400 |
1500 |
|
|
|
CFH-1500 |
1500 |
1600 |
|
|
