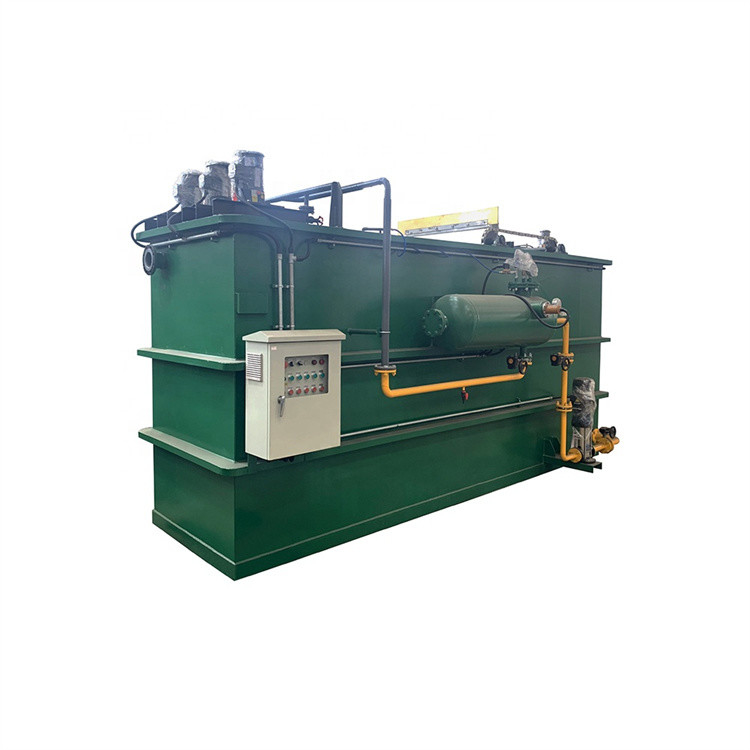

Water Clarification Dissolved Air Flotation Unit Waterproof Automatic Running

Product Description

Useful Manufacturing Plant Water Clarification Machine Equipment Dissolved Air Flotation Unit


• Meet strict industry standards and facilitate compliance to environmental regulations.
• DAF uses dissolved air flotation technology to separate fine dispersed particles from process water and wastewater to reach your desired specifications.
• With the use of internal separation plates, high efficiency clarification is provided in modern, compact DAF designs. This allows for SUEZ's rectangular and vertical models to fit into existing installations where space is limited.


Features

Dissolved Air flotation technology plays an important role in solid-liquid separation Simultaneously reduce COD, BOD, chroma. Firstly, mix flocculating into raw water and stir thoroughly. After the effective retention time, the raw water enters into the reaction zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. skimmer removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.
