Wastewater treatment screening , Stair Wastewater Bar Screen for Meat industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | WJG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Stair Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Motor Power: | 0.75～3.0kW | Structure: | Compact Connection |
| High Light: | water purification screening,rotary bar screen |
||
Product Description
Specifications:
|
Screen width B(mm) |
600～3000 |
|
Channel width B1(mm) |
B+100 |
|
Channel depth H(m) |
1.5～10 |
|
Angle (°) |
60～75 |
|
Mesh diameter (mm) |
3,5,6, 8, 10 |
|
Operating speed (m/min) |
~3.8 |
|
Motor power(kW) |
0.75～3.0 |
|
Wash water pressure(MPa) |
≥0.3 |
|
Maximum water head(m) |
1.0 |
Description:

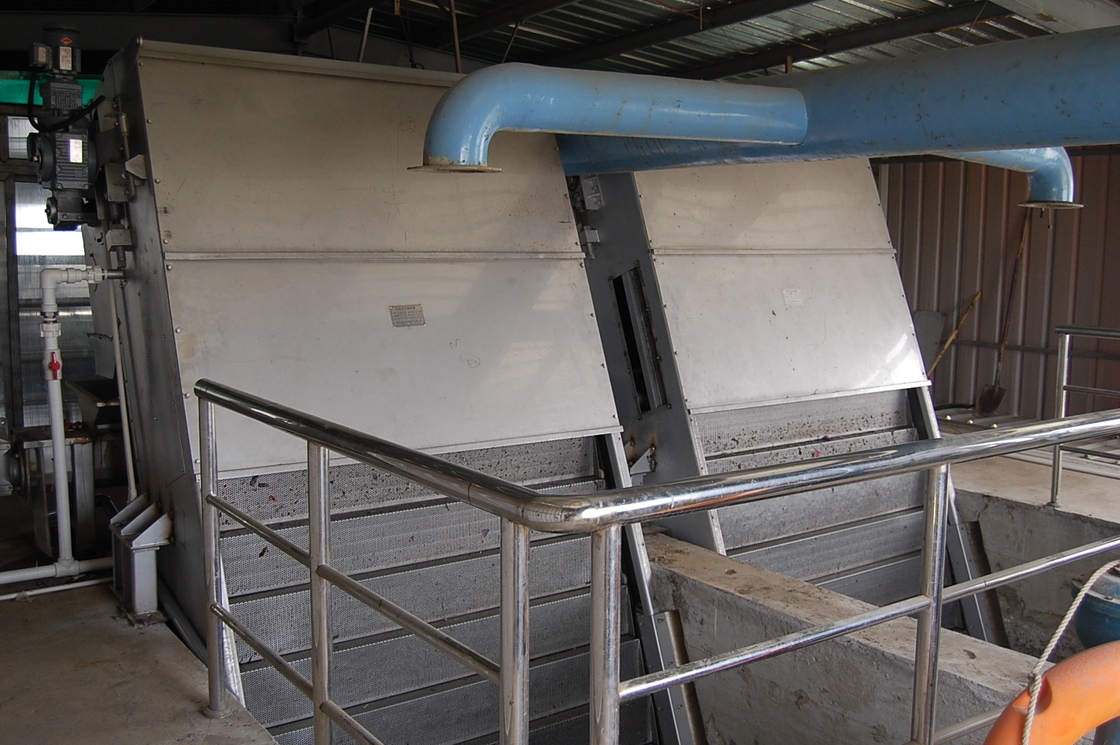

The WJG stair screen is installed in a wide variety of applications from water intake to various municipal and industrial wastewater applications. This screen is designed to handle high flows with low headloss and for placement in deep channels with high water levels.

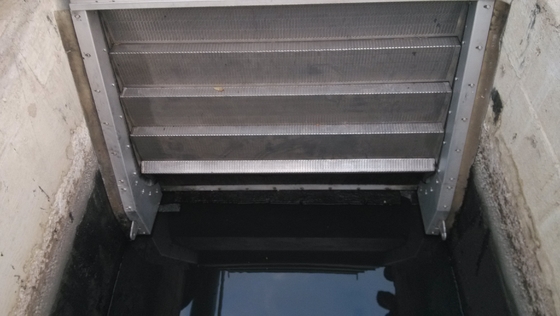

The screening component is a continuous belt of individual, perforated media plates formed into V-shaped panels. Each panel is independently attached to the chain and is replaceable from the top of the channel.
The large amount of screen surface area on each panel promotes high capture rate and the ability to build a solids mat that attracts finer solids.
Stainless steel side seal plates prevent bypass. A UHMW seal between the chain and the side frame provides another level of by pass protection.
Applications:
1. Municipal sewage
2. Abattoirs
3. Cheese processing
4. Container washing
5. Dairies
6. Food processing
7. Fish processing
8. Metal removal
9. Meat industry
10. Poultry processing
11. Pulp& paper
12. Small goods
13. Tanneries
14. Vegetable industries
Competitive Advantage:
|
Designed with maintenance in mind
|
Each V-shaped screen panel is replaceable without removing the screen from the channel. |
|
Designed to prevent bypass
|
Stainless steel side seal plates and UHMW chain guard |
|
Designed to present more screening area to the incoming flow
|
Entire width of the screen panel is the active filter area |
|
Designed to capture finer solids
|
Each panel builds a mat of solids as it moves out of the flow |
|

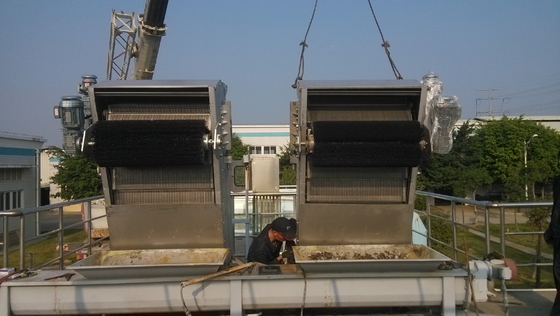

Designed to loosen and remove solids
|
Two high pressure, angled sprays and a rotating brush located at the discharge |
