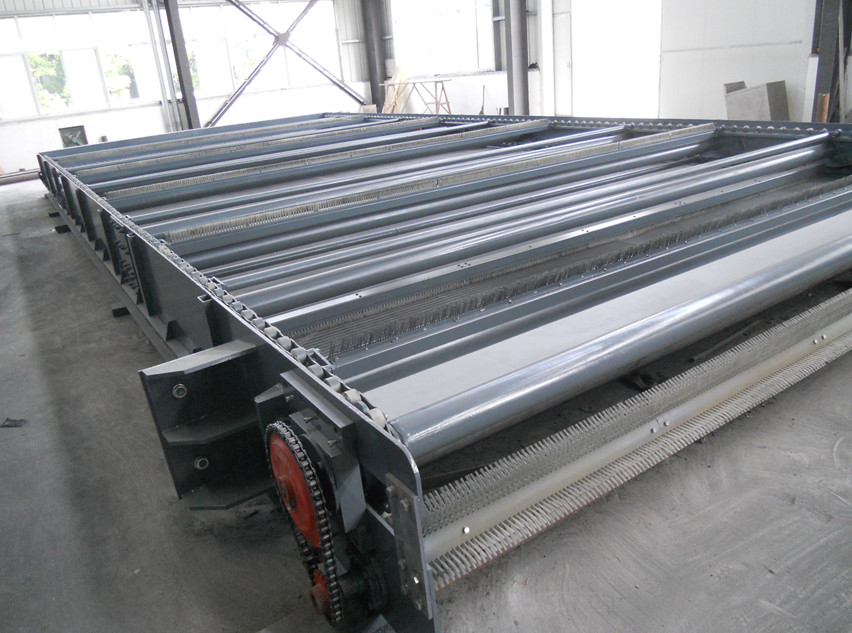

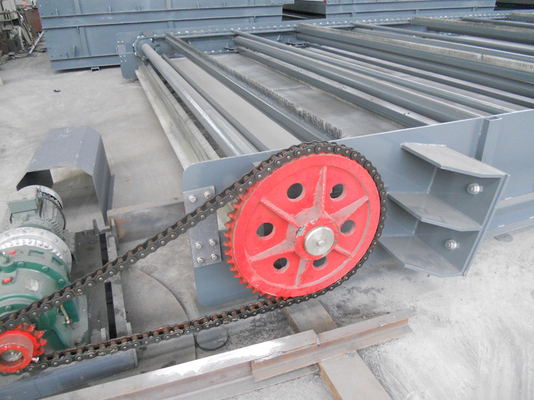

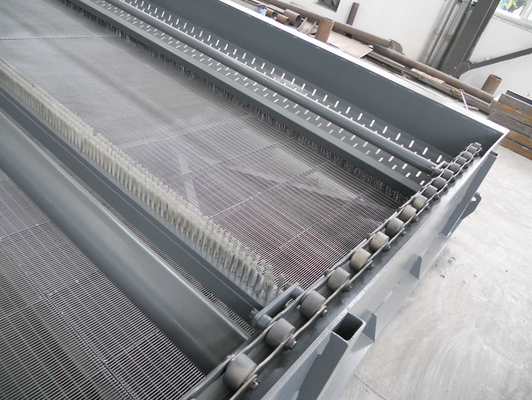

Grille Decontamination Machine Rotary Bar Screen With Compact Connection
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CZB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Supply Ability: | 10 pcs per month |
|
Detail Information |
|||
| Product Name: | Bar Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Structure: | Compact Connection | ||
| High Light: | water purification screening,rotary bar screen |
||
Product Description
Grille decontamination machine fo CZB Net-Grate Grille
Application
■ As it can effectively block and remove the twigs, weeds, fishes and floating substances with the diameter of over φ3.6mm, the equipment is widely applied in the water-supply systems of large power plant and other industries, the water supply and drainage systems in municipal engineering.
Advantages
■ The equipment has reliable filtration and high sewage removal rate
■ The water flows smoothly, operate stably and have low noise
■ Have low energy consumption, and can realize the full-automatic operation
| Main Parameters and Dimensions | CZB | |||||||
| 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4500 | 5000 | |
| Trench Breadth B1 (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4500 | 5000 |
| Equipment Breadth under Trench (mm) | 900 | 1400 | 1900 | 2400 | 2900 | 3400 | 4400 | 4900 |
| Total Equipment Breadth B2 (mm) | 1400 | 1900 | 2400 | 2900 | 3400 | 3900 | 4900 | 5400 |
| Trench Height H (mm) | 3000~10000 (Defined by user) | |||||||
| Discharging Outlet Height h (mm) | 400~1200 (Defined by user, and conventionally 800) | |||||||
| Installation Angle α | 70°,75°,80° | |||||||
| Net-grate Aperture Dimensions (mm) | 3.5×56 | |||||||
| Motor Power (kW) | 1.1~4 | 3~7.5 | ||||||
