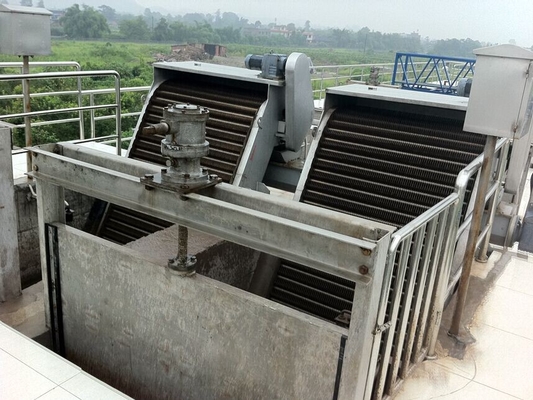

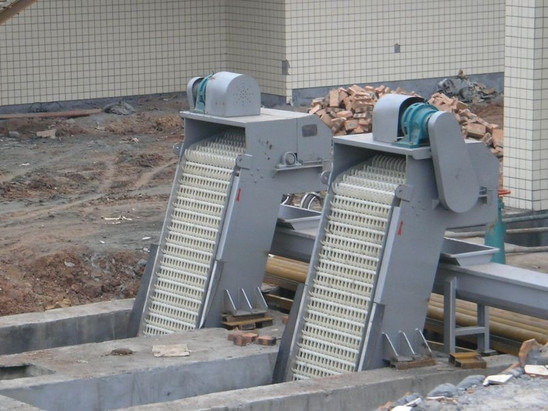

SS Rotary Mechanical Bar Screen in wastewater treatment , Grille for water solid - liquid seperation
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CFH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 pcs per month |
|
Detail Information |
|||
| Product Name: | Bar Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Structure: | Compact Connection | ||
| High Light: | rotary bar screen,solid liquid separation equipment |
||
Product Description
SS Rotary Mechanical Bar Screen in wastewater treatment , Grille for water solid - liquid seperation
Specifications:
|
Model |
Motor power (kw) |
Screen width (mm) |
Channel depth (mm) |
|
|
CFH-300 |
0.37~0.55 |
300 |
400 |
|
|
CFH-400 |
400 |
500 |
||
|
CFH-500 |
0.55~1.1 |
500 |
600 |
|
|
CFH-600 |
600 |
700 |
||
|
CFH-700 |
700 |
800 |
||
|
CFH-800 |
0.75~1.5 |
800 |
900 |
|
|
CFH-900 |
900 |
1000 |
||
|
CFH-1000 |
1000 |
1100 |
||
|
CFH-1100 |
1.1~2.2 |
1100 |
1200 |
|
|
CFH-1200 |
1200 |
1300 |
|
|
|
CFH-1300 |
1.5~3.0 |
1300 |
1400 |
|
|
CFH-1400 |
1400 |
1500 |
|
|
|
CFH-1500 |
1500 |
1600 |
|
|
Product Description
CFH serial rotary bar screen is ideal intercept dirt solid -liquid device in water source inlet for medium and large solid waste , which can continuous automatic eliminate all kinds of figure sundries in the fluid, which can as a special equipment widely used in urban sewage treatment,water supply industry,, electric plant water inlet, at the same time, it can be as a essential special equipment in the production processing of textile, food processing,, paper making, leather etc industry, it is the most advanced Solid-liquid separation equipment in china. Rotary grilling machine also called bar screen spotter.
Working Principle and structure of Rotary Bar Screen :
CFH serial rotary bar screen mainly composed of driven device,rake tooth facility ,Flush facility etc, which is assembled
to be a group of rotary grille chain by a unique rake tooth, driven by Motor reducer, the rake tooth chain going Rotary motion as reverse flow.When the rake tooth chain operate to upside of equipment, due to the guiding of Geneva wheel and curve, which produce the relative self-cleaning motion between each group rake tooth, most of the solid drop down by gravity. Another parts clean up the sundries sticking in the rake tooth by sweeper ‘s Reverse movement.
Rake tooth chain similar to grilling by water flow direction, the rake tooth clearance which assembled in rake tooth chain shaft can be chose according to usage condition; Which can guarantee water flow pass by smoothly after the rake tooth separate the suspended solid in the fluid. the whole process can be continuous and intermittent.
