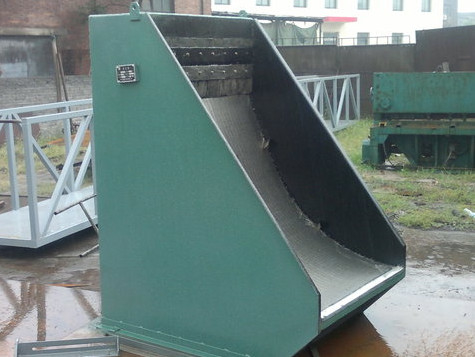

• Static Sieve Screen for Livestock Wastewater Pretreatment 9 - 160m³/h Capacity
Static Sieve Screen for Livestock Wastewater Pretreatment 9 - 160m³/h Capacity

Static Sieve Screen for Livestock Wastewater Pretreatment 9 - 160m³/h Capacity

Product Details:

Place of Origin: China
Brand Name: CHENENG
Certification: CE/ISO
Model Number: CHS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: nude packing, bulk packed in wooden cases
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 20 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Static Screen Application: Water Treatment
Material: CS Or SS Standard: ISO
Capacity: 9-160m³/h) Structure: Compact Connection
High Light:

rotary bar screen

,

solid liquid separation equipment

Product Description

Static Sieve Screen for Livestock Wastewater Pretreatment 9 - 160m³/h Capacity





Model

Capacity (m³/h)

Screen width

(mm)

Net weight

 (kg)

Operating weight

(kg)

CHS-60

9~60

600

280

980

CHS-90

12~80

900

350

1300

CHS-120

18~100

1200

460

1950

CHS-150

22~130

1500

530

2350

CHS-200

28~160

2000

690

3170





The static sieve is a filter employed to separate solid-liquid in Wastewater Treatment Plants (WWTP). The static sieve provides an economic solution in continuous for liquid-liquid separation process, with little need for attention by the maintenance service and zero power requirements.
It is installed:
As a primary treatment of urban water with a mesh size of between 1 and 1.5 mm.
As a pretreatment in industrial waste water with a mesh of between 0.5 and 1 mm, to eliminate the thick waste in the paper, textile, tanning, laundry, canning and milk
industries and abattoirs, etc.


STRUCTURE AND MATERIALS
The static screen consists mainly of a body made of Polyester reinforced with fiberglass and a stainless steel wire mesh frame that channels the waste water to be treated.



Static Sieve Screen for Livestock Wastewater Pretreatment 9 - 160m³/h Capacity 0
