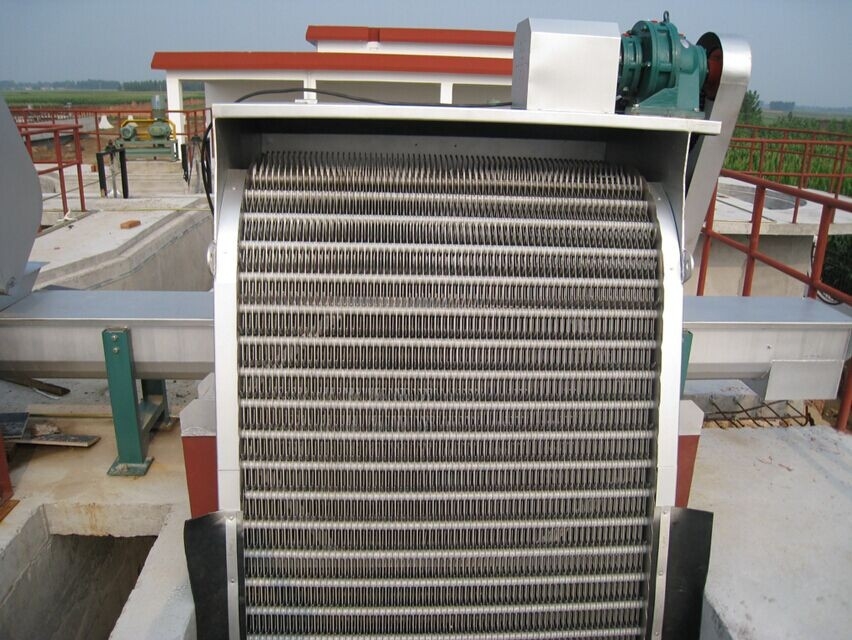

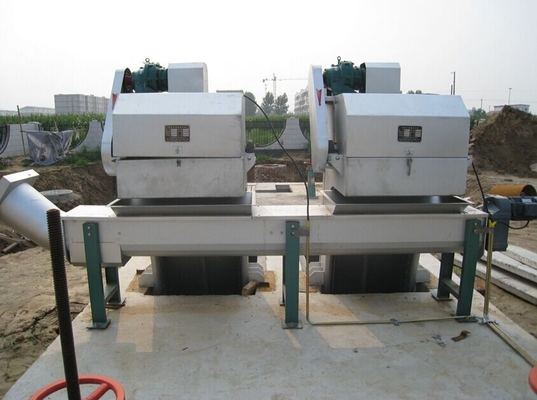

Automatic rotatory solid - liquid separator bar screen , screening process in water treatment plant
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CFH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 pcs per month |
|
Detail Information |
|||
| Product Name: | Bar Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Motor Power: | 0.37-3.0kw | Structure: | Compact Connection |
| High Light: | water purification screening,solid liquid separation equipment |
||
Product Description
Automatic rotatory solid - liquid separator bar screen , screening process in water treatment plant
Product Description
What is a solid-liquid separator bar screen?
CFH series solid-liquid separator bar screen is also called fine mechanical fine bar screen or mechanical rake bar screen, mainly used to eliminate impurities from liquid in wastewater pretreatment process. We have been over 8 years in manufacturing and designing of solid-liquid separator bar screen since year 2006.
Working Principles
CFH series solid-liquid separator bar screen is composed of electric motor, gear box, steel frame, tooth rake chain, traction chain etc..
Electric motor and gearbox are mounted on the upper rack of steel frame, drive sprocket of tooth rake traction device is at the head of steel frame, rotated by gearbox output shaft, work together with another driven sprocket which is located at the end of steel frame.
Two sprockets are connected by traction chains, with the rotation of sprockets, tooth rake group run in the opposite direction of water flow. When impurities are carried to the steel frame upper limit position, because of the guiding of sheave and curve rails, most impurities will fall into a junk car and be carried away.
At the same time, tooth rake will self-clean up with each other. Wastewater after treated flow away through the gap of tooth rake. JHZ series solid-liquid separator bar screen is your ideal choice to remove colloidal particles, solids and impurities.
Product Uses
Rotatory solid-liquid separator bar screen is mainly used in pretreatment process to remove large size suspended solids and impurities from wastewater.
As an advanced essential solid-liquid separation equipment, solid-liquid separator bar screen is widely used in textile industry, food industry, paper-making industries etc. for wastewater treatment. Strong technical team and strict final inspections ensure excellent quality and long service life of our solid-liquid separator bar screen.
|
Model |
Motor power (kw) |
Screen width (mm) |
Channel depth (mm) |
|
|
CFH-300 |
0.37~0.55 |
300 |
400 |
|
|
CFH-400 |
|
400 |
500 |
|
|
CFH-500 |
0.55~1.1 |
500 |
600 |
|
|
CFH-600 |
|
600 |
700 |
|
|
CFH-700 |
|
700 |
800 |
|
|
CFH-800 |
0.75~1.5 |
800 |
900 |
|
|
CFH-900 |
|
900 |
1000 |
|
|
CFH-1000 |
|
1000 |
1100 |
|
|
CFH-1100 |
1.1~2.2 |
1100 |
1200 |
|
|
CFH-1200 |
|
1200 |
1300 |
|
|
CFH-1300 |
1.5~3.0 |
1300 |
1400 |
|
|
CFH-1400 |
|
1400 |
1500 |
|
|
CFH-1500 |
|
1500 |
1600 |
|
