Static screening in wastewater treatment , sewage treatment equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 pcs per month |
|
Detail Information |
|||
| Product Name: | Static Screen | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 9-160m³/h | Structure: | Compact Connection |
| High Light: | rotary bar screen,solid liquid separation equipment |
||
Product Description
Static screening in wastewater treatment , sewage treatment equipment
Specifications:
|
Model |
Capacity (m³/h) |
Screen width (mm) |
Net weight (kg) |
Operating weight (kg) |
|
CHS-60 |
9~60 |
600 |
280 |
980 |
|
CHS-90 |
12~80 |
900 |
350 |
1300 |
|
CHS-120 |
18~100 |
1200 |
460 |
1950 |
|
CHS-150 |
22~130 |
1500 |
530 |
2350 |
|
CHS-200 |
28~160 |
2000 |
690 |
3170 |
Description:

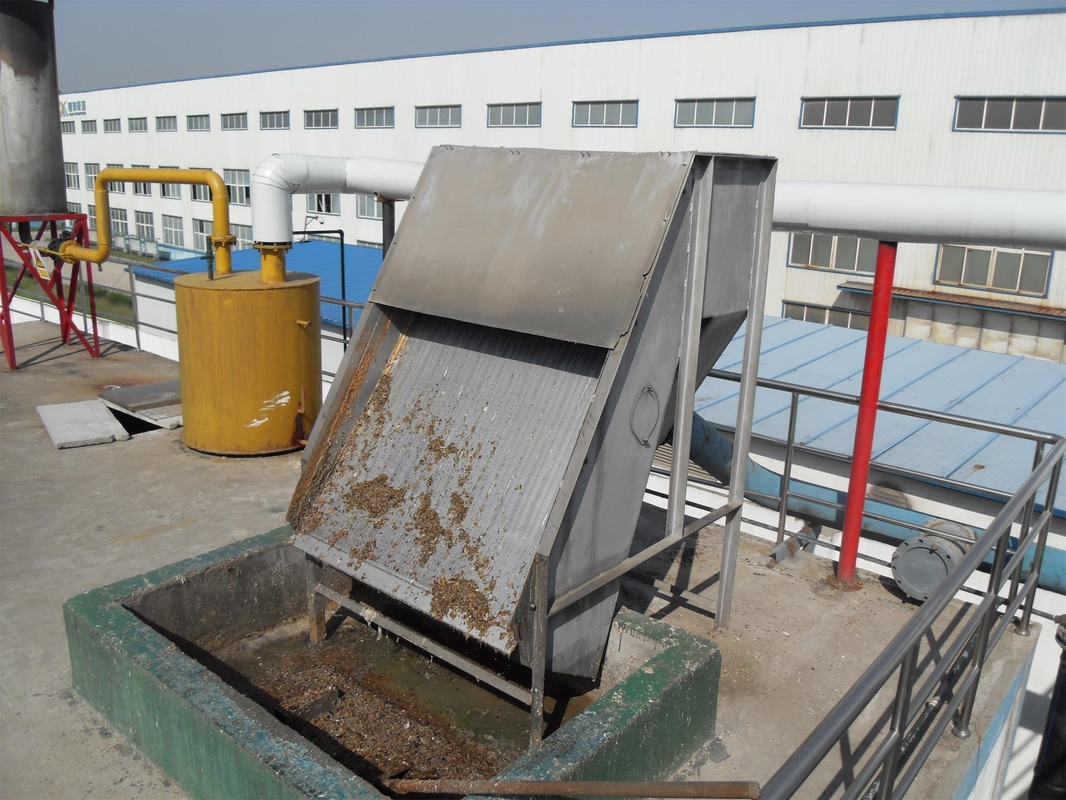

The CHS static screen unit is a proven, reliable performer for liquid/solid separation in municipal and industrial applications, particularly for screening fibrous and non-greasy solids. There are no moving parts, motors, or complicated connections. The unit is a simple and economical to operate.
Although the CHS static screen is one of the most basic screens, it is designed with quality and customs features to meet site requirements. It is compact and provides high throughput.

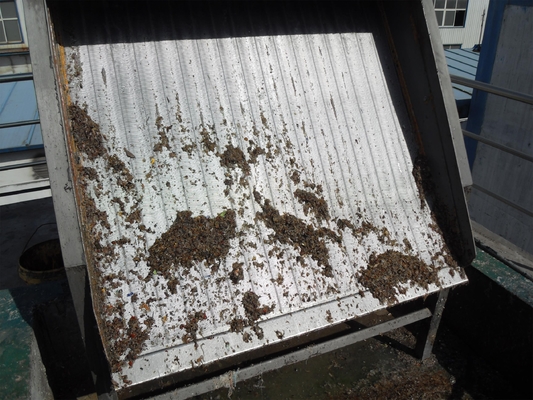

The unit’s unique wedgewire screen panel, increases the Coanda effect by rapidly stripping liquid from the influent as it hits the top of the screen panel. The rapid shearing maximizes solids capture and minimizes screen blinding.
Additional drainage occurs as the solids captured by the screen roll down the curved screen face. At the end of the screen panel is a drip lip that directs the drained liquid away from the solids and returns it to the filtrate chamber.
Applications:
1. Abattoirs
2. Cheese processing
3. Container washing
4. Dairies
5. Food processing
6. Fish processing
7. Metal removal
8. Meat industry
9. Poultry processing
10. Pulp& paper
11. Small goods
12. Tanneries
13. Vegetable industries
Competitive Advantage:
- Available in 304 or 316 stainless steel
- Flow distribution baffle maximizes solids capture
- Pivoting screen panel on different wide models facilitates maintenance and clean-up
