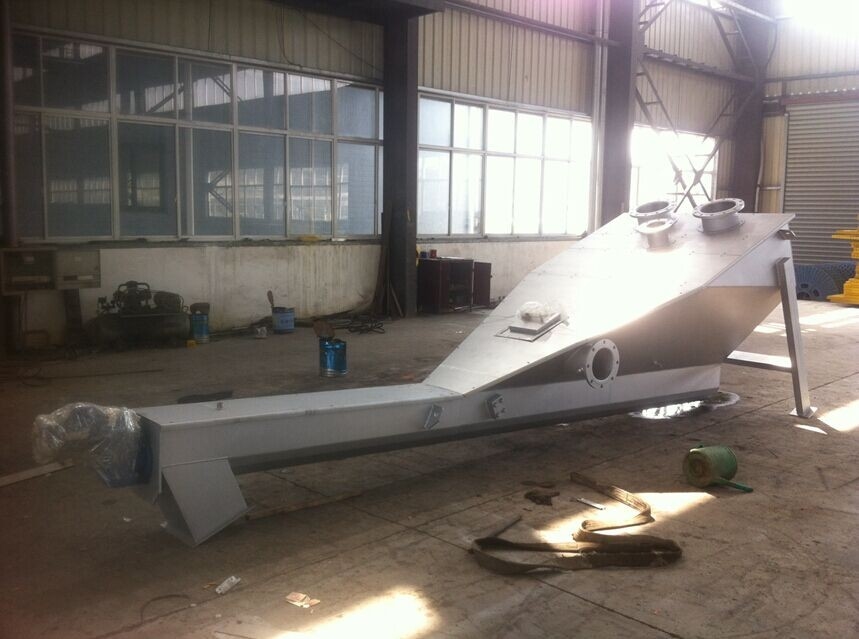

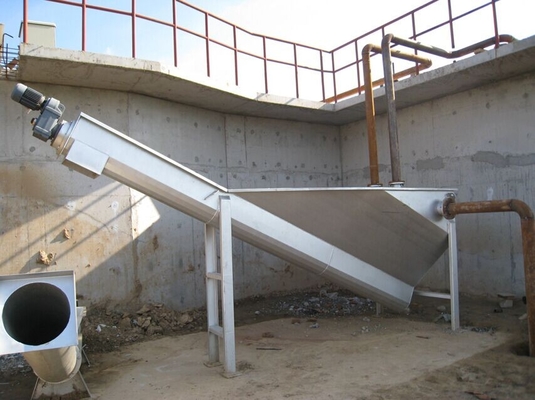

Water Sand Grit Separator , Gravel Separator For Sewage Treatment Plants or Paper Mills
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Grit Separator | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 5-35L/s | Structure: | Compact Connection |
| High Light: | gravel separator,Grit classifier |
||
Product Description
Water Sand Grit Separator , Gravel Separator For Sewage Treatment Plants or Paper Mills
Introduction
CGS spiral sand (slag) and water separator is a solid-liquid separation equipment, it's a a shaftless screw conveyor, the blade is not easy winding and sticking sludge.It's mainly used in sewage treatment plants,paper mills,chemical plants, steel mills, power plants, aluminum plants, soda ash plant industry.
Specifications:
|
Model |
CGS-260 |
CGS-300 |
CGS-350 |
CGS-400 |
|
Screw diameter(mm) |
260 |
300 |
350 |
400 |
|
Capacity(L/s) |
5~12 |
12~20 |
20~27 |
27~35 |
|
Angle(°) |
25 |
|||
|
Screw rotary speed(r/min) |
4.8 |
|||
|
Motor power(kw) |
0.37 |
0.55 |
0.75 |
|
|
Recovery rate(Granularity≥0.2mm) |
≥96 |
|||
|
Grit moisture content(%) |
＜65 |
|||
Product improvement
* Water inlet is far from overflow outlet which can easily separate the sand (slag)from water.
* The proportion of mixture of large sand (slag) particle slide along the sand conveying pipe U
groove under gravity force, and deposition in the water storage tank.
