High corrosion resistance Grit classifier for removal of grit in Municipal
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Grit Classifier | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 5-35L/s | Structure: | Compact Connection |
| High Light: | sand water separator,gravel separator |
||
Product Description
High corrosion resistance Grit classifier for removal of grit in Municipal

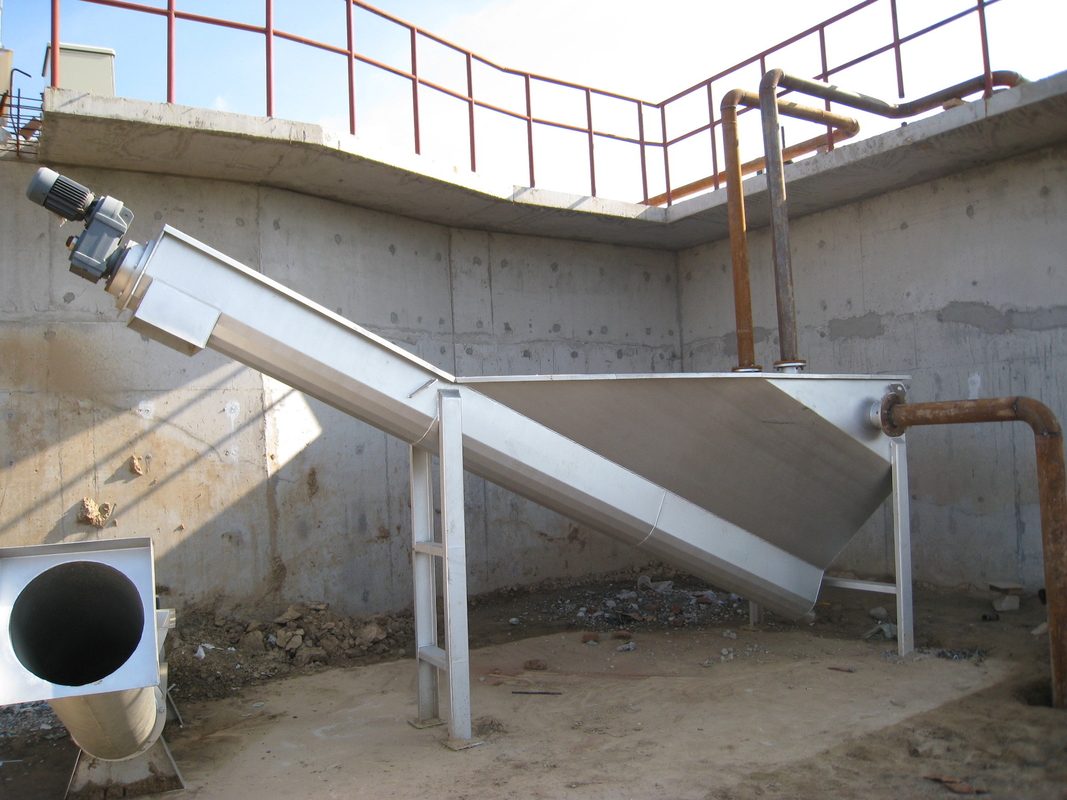

Cheneng CGS Grit Classifiers are widely used on sewage works for the removal of grit. The flow into the tank can be defined exactly and simulated mathematically. When operating at optimum flow, the grit separation is up to 95%(grain size 0.2mm).
The difference in density between grit and other organic components can partly be taken into consideration to ensure reduced organic contamination and thus static dewatering of the classified girt. High efficiency has enabled the Cheneng Grit Classifier to be significantly smaller than conventional classifiers.
Features
High levels of grit separation of 95% of grain size 0.2.-0.25mm
Screw supported on both ends for minimised wear
High corrosion resistance
Encapsulated. odour-free plant
Option of frost-proof design
Applications
Municipal
Specifications:
|
Model |
CGS-260 |
CGS-300 |
CGS-350 |
CGS-400 |
|
Screw diameter(mm) |
260 |
300 |
350 |
400 |
|
Capacity(L/s) |
5~12 |
12~20 |
20~27 |
27~35 |
|
Angle(°) |
25 |
|||
|
Screw rotary speed(r/min) |
4.8 |
|||
|
Motor power(kw) |
0.37 |
0.55 |
0.75 |
|
|
Recovery rate(Granularity≥0.2mm) |
≥96 |
|||
|
Grit moisture content(%) |
＜65 |
|||
