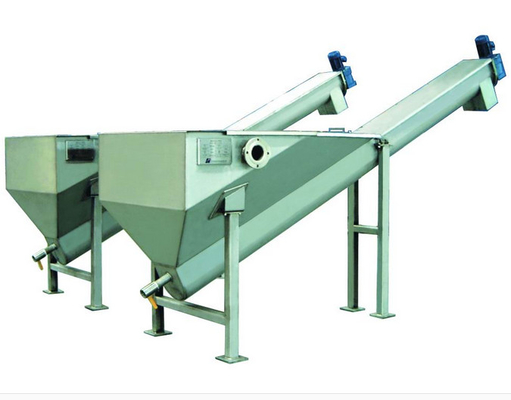

High efficiency spiral water grit separator for urban guest house , mineral factory
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Grit Separator | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 5-35L/s | Structure: | Compact Connection |
| High Light: | gravel separator,Grit classifier |
||
Product Description
High efficiency spiral water grit separator for urban guest house , mineral factory

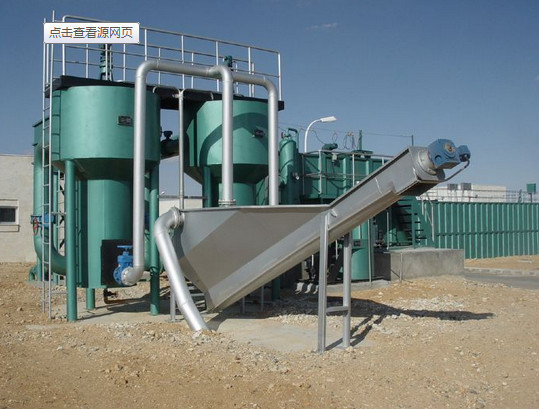

CGS grit chamber slag separator make use of water hydrocyclone power, then separate the mire sand and organic matters to remove the sand, it is widely used for urban guest house, mineral factory, and water treatment project pretreatment process.
Structure and work principle
1. hydrocyclone sink sand pool working principle
hydrocyclone sink sand pool have flat bottom circle pond and awl bottom circle pond two kind. Have sand storage hopper at the center of pool bottom, have sand romoval machine in the pool which consists of driving device, mixing device etc.
2. stalk flow type mixer working principle
The turn-over of the stalk folw type mixer contributes to at the sand train get into store sand before entering into the awl of lead to lead and for many times to sand grain the oar leaf sho clean,revolve flow of qmeliorable water.
Main features
The structure is compact, cover small area, less equipment investment.
the transmission efficiency and mechanical wear small, little equipments break down, save energy, convenient to maintainence.
sink sand effect is good, high efficiency in sand removal/
According to different quality of water, adapt corrosion resistant material, equipment patience is strong.
process arrangement is flexible and easy to supporting the conbination.
Specifications:
|
Model |
CGS-260 |
CGS-300 |
CGS-350 |
CGS-400 |
|
Screw diameter(mm) |
260 |
300 |
350 |
400 |
|
Capacity(L/s) |
5~12 |
12~20 |
20~27 |
27~35 |
|
Angle(°) |
25 |
|||
|
Screw rotary speed(r/min) |
4.8 |
|||
|
Motor power(kw) |
0.37 |
0.55 |
0.75 |
|
|
Recovery rate(Granularity≥0.2mm) |
≥96 |
|||
|
Grit moisture content(%) |
＜65 |
|||
