CGS Type Grit Chamber Spiral Sand Water Separator High Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Grit Separator | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 3-35L/s | Structure: | Compact Connection |
| High Light: | sand water separator,gravel separator |
||
Product Description

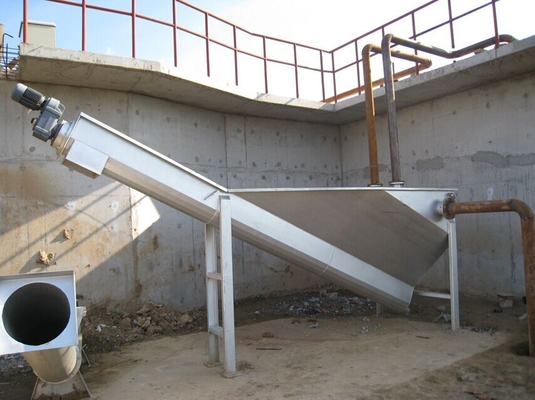

CGS Type Grit Chamber Spiral Sand Water Separator High Efficiency
Use and Brief
CGS type spiral sand water separator for sewage treatment plant, will sink sink sand pool sand pool of water from sand to split water sand mixture.
Structure and working principle

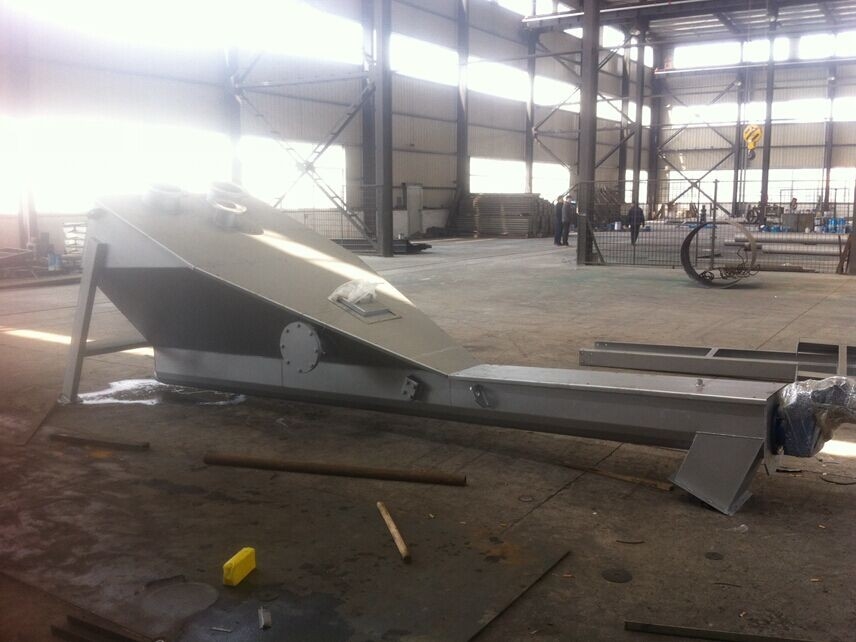

CGS sand water separator from no shaft lining spiral, article u-shaped slot,, water tank, guide plate and drive equipment etc.
The working process of the sand mixture water from separator: top end, the mixture of moderate to input water tank large such as sand will be deposited on U shape at the bottom of the tank, in a spiral prodding, the sand along the buy U shape the groove bottom ascension, leave after liquid surface goes on from a distance, to continue in full by the row after dehydration sand sand discharge to mouth filled with sand sand barrels, and the separation of water discharge from the relief mouth inside the plant and sent to the pool.
Specifications:
|
Model |
CGS-260 |
CGS-300 |
CGS-350 |
CGS-400 |
|
Screw diameter(mm) |
260 |
300 |
350 |
400 |
|
Capacity(L/s) |
5~12 |
12~20 |
20~27 |
27~35 |
|
Angle(°) |
25 |
|||
|
Screw rotary speed(r/min) |
4.8 |
|||
|
Motor power(kw) |
0.37 |
0.55 |
0.75 |
|
|
Recovery rate(Granularity≥0.2mm) |
≥96 |
|||
|
Grit moisture content(%) |
＜65 |
|||
