Sewage Treatment Sequencing Batch Reactors / Revolving SBR Water Decanter
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CMRD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | SBR Decanter | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS | Standard: | ISO |
| Capacity: | 100-3000m³/h | Structure: | Compact Connection |
| High Light: | sequential batch reactor,sequence batch reactor |
||
Product Description

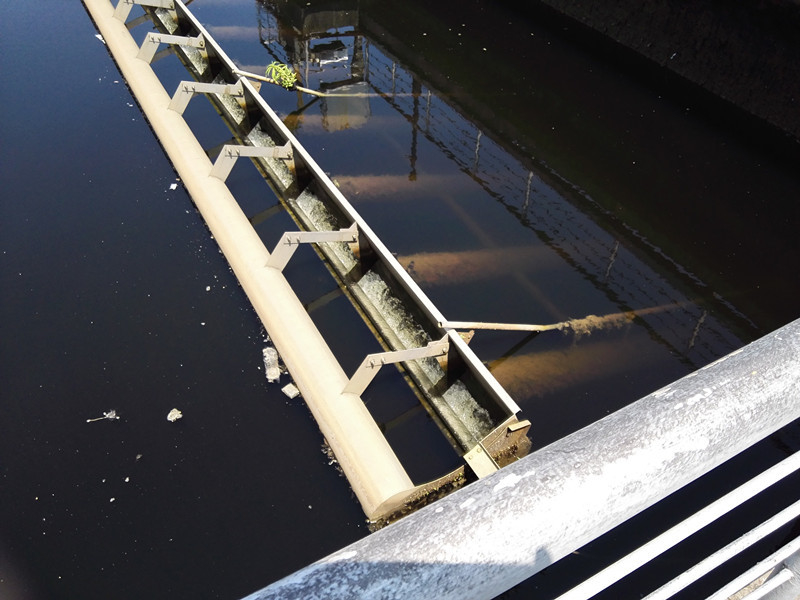

High Quality Sewage Treatment Revolving SBR Water Decanter
Application
Decanter is the key equipment of SBR(sequencing batch reactor activated sludge process)and CASS.Periodic drainage is adopted in SBR and CASS,which will change the water level of drain.In order to ensure the layers not be stirred and supermatant liquid always stay on the top during drainage,a kind of weir is needed to adjust water level according to the changement,which is decanter.
Advantage
- Drainage is effective with a four-link drive
- Underwater support is stable,major risks are stopped and energy consumption is low
- Unique structure achieves flexible drainage
- Unique waste liquid classification device avoid dross flowing into the outlet device
| Model | Capacity(m³) | Decant depth(m) | Weir length(m) | Outlet main pipe diameter(mm) | Drive power(kw) |
| CMRD100 | 100 |
1~3 |
1 | 200 | 0.37 |
| CMRD200 | 200 | 1~3 | 2 | 300 | 0.37 |
| CMRD300 | 300 | 1~3 | 2.7 | 350 | 0.37 |
| CMRD400 | 400 | 1~3 | 3.5 | 400 | 0.37 |
| CMRD500 | 500 | 1~3 | 4.2 | 500 | 0.37 |
| CMRD600 | 600 | 1~3 | 5.2 | 500 | 0.55 |
| CMRD800 | 800 | 1~3 | 7 | 600 | 0.75 |
| CMRD1000 | 1000 | 1~3 | 8.2 | 600 | 1.1 |
| CMRD1250 | 1250 | 1~3 | 10 | 700 | 1.1 |
| CMRD1500 | 1500 | 1~3 | 12 | 600(double) | 1.1 |
| CMRD1750 | 1750 | 1~3 | 14.5 | 600(double) | 1.1 |
| CMRD2000 | 2000 | 1~3 | 16 | 700(double) | 1.1 |
| CMRD2500 | 2500 | 1~3 | 20 | 700(double) | 1.1 |
| CMRD3000 | 3000 | 1~3 | 24 | 800(double) | 1.5 |
