SBR Decanter Sequencing Batch Reactors In Industry , 100-3000m³/H
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CMRD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | SBR Decanter | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS | Standard: | ISO |
| Capacity: | 100-3000m³/h | Structure: | Compact Connection |
| High Light: | sequential batch reactor,sequence batch reactor |
||
Product Description

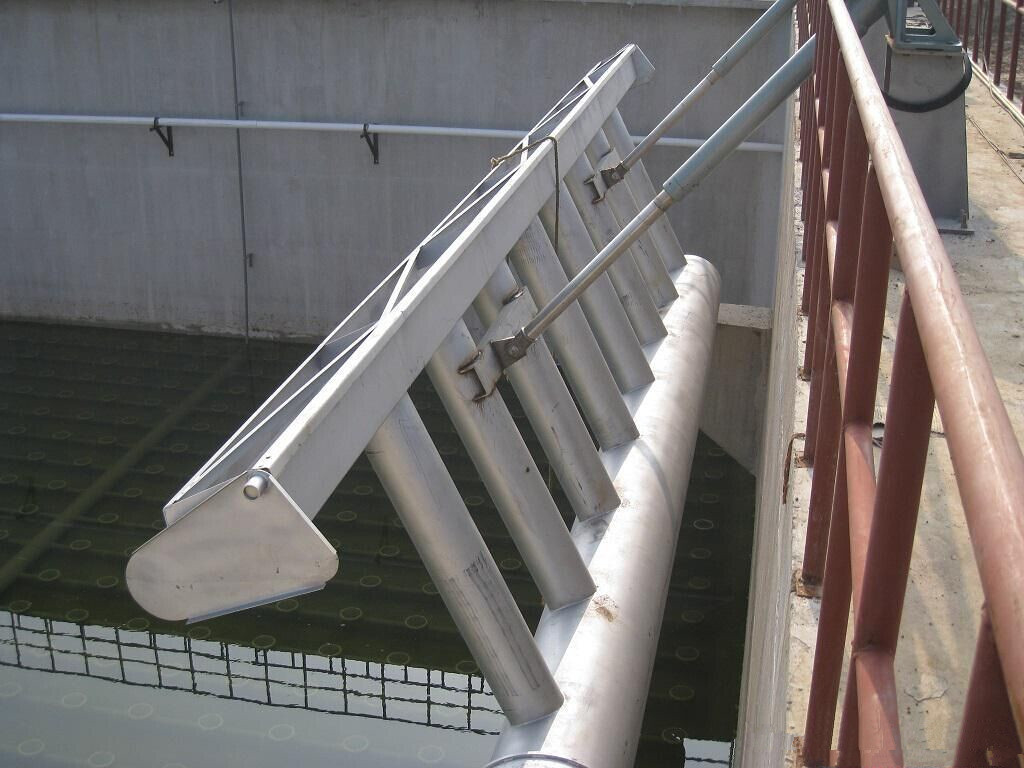

Industrial water treatment decanter/SBR decanter from Wuxi cheneng
Due to many advantages, the SBR technology for wastewater treatment is applies more widely, the key part of which is one of the equipments - decanter, which is of vital importance in the technology.
The decanter is mainly used in water discharging stage in reaction tank. It is used for discharging supernatant fluid in tank and can be automatic control to circulate run.
Water decanter is composed of decant water device, transmission gear, skimmer, slewing bearing, etc.
It is applied to technological process of CASS, CAST, ICEAS, DAT-IAT, etc. in SBR treatment, which treats domestic sewage and industrial wastewater. It is widely used in paper industry, ethanol industry, painting industry, leather industry, sugar industry and so on.
Advantages:
large processing capacity, simple structure and good decanting effectiveness;
It is reliable and easy to maintain, with high automation degree.
| Model | Treatment flow(m³/h) | Decant depth(m) | Effluent weir length(m) | Effluent pipe diameter(mm) | Drive power(kw) |
| CMRD100 | 100 | 1~3 | 1 | 200 | 0.37 |
| CMRD200 | 200 | 2 | 300 | 0.37 | |
| CMRD300 | 300 | 2.7 | 350 | 0.37 | |
| CMRD400 | 400 | 3.5 | 400 | 0.37 | |
| CMRD500 | 500 | 4.2 | 500 | 0.37 | |
| CMRD600 | 600 | 5.2 | 500 | 0.55 | |
| CMRD800 | 800 | 7 | 600 | 0.55 | |
| CMRD1000 | 1000 | 8.2 | 600 | 1.1 | |
| CMRD1250 | 1250 | 10 | 700 | 1.1 | |
| CMRD1500 | 1500 | 12 | 600(double outlet) | 1.1 | |
| CMRD1750 | 1750 | 14.5 | 600(double outlet) | 1.1 | |
| CMRD2000 | 2000 | 16 | 700(double outlet) | 1.1 | |
| CMRD2500 | 2500 | 20 | 700(double outlet) | 1.1 | |
| CMRD3000 | 3000 | 24 | 800(double outlet) | 1.5 |
