Automatic Sequencing Batch Reactors For SBR CASS Tank Revolving Water Decanter
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CMRD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | SBR Decanter | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS | Standard: | ISO |
| Capacity: | 100-3000m³/h | Structure: | Compact Connection |
| High Light: | sequential batch reactor,sequence batch reactor |
||
Product Description

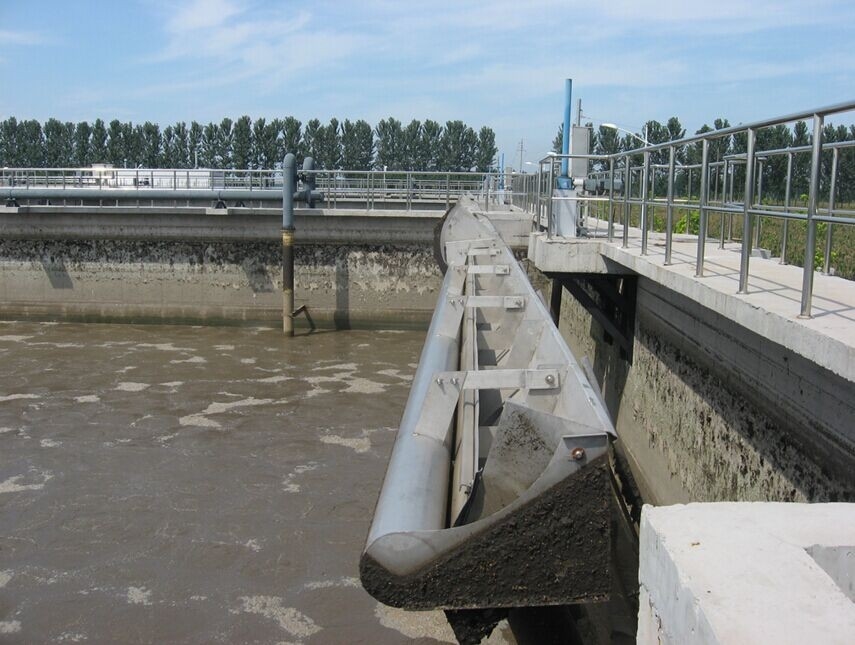

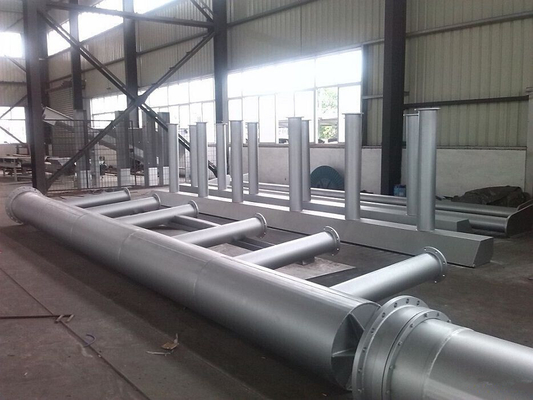

Automatic Decanter Helps SBR Performance ,SBR CASS tank Revolving water decanter
SBR decanter
Cheneng FCP decanter is a key equipment for SBR process, in SBR process continuous inflow and treatment is accommodated through alternating react, settle,and decant sequences in SBR trains. Each train, through a typically operating cycle of three to five hours, provides all of the processes of activated sludge treatment in one basin.
Advantages of SBR
Enhanced Treatment Performance
Superior sludge settling performance due to bio-selector and aerobic/anoxic/anaerobic cyclic sequences
Suppress filamentous bacteria thus lower potential for sludge bulking
Enhanced nutrient removal (Denitrification and Bio-P) without chemicals or separate tanks
Built-in equalization capacity preventing performance deterioration during surge conditions
Smaller Footprint and Lower Construction Cost
Equalization, biological treatment, and clarification achieved in one tank
No external return sludge pumping system
Rectangular tanks with common-wall design
Simple process, fast construction and installation
Flexibility
Duration of cycle or sequences can be adjusted to accommodate variation in hydraulic flow or biological loading, e.g. shorter cycle for peak flow conditions or shorter aeration time for lower loading
Easy expansion with single rectangular tank design
Automatic control system provides easy and flexible adjustment to operational parameters
Low Operation and Maintenance Cost
Better aeration control, denitrification, and lower power consumption
Less and simpler equipment, thus reduced maintenance
Automatic control adapting to changing conditions with less operator attention
Biological N and P removal without need for chemicals
| Model | Treatment flow(m³/h) | Decant depth(m) | Effluent weir length(m) | Effluent pipe diameter(mm) | Drive power(kw) |
| CMRD100 | 100 | 1~3 | 1 | 200 | 0.37 |
| CMRD200 | 200 | 2 | 300 | 0.37 | |
| CMRD300 | 300 | 2.7 | 350 | 0.37 | |
| CMRD400 | 400 | 3.5 | 400 | 0.37 | |
| CMRD500 | 500 | 4.2 | 500 | 0.37 | |
| CMRD600 | 600 | 5.2 | 500 | 0.55 | |
| CMRD800 | 800 | 7 | 600 | 0.55 | |
| CMRD1000 | 1000 | 8.2 | 600 | 1.1 | |
| CMRD1250 | 1250 | 10 | 700 | 1.1 | |
| CMRD1500 | 1500 | 12 | 600(double outlet) | 1.1 | |
| CMRD1750 | 1750 | 14.5 | 600(double outlet) | 1.1 | |
| CMRD2000 | 2000 | 16 | 700(double outlet) | 1.1 | |
| CMRD2500 | 2500 | 20 | 700(double outlet) | 1.1 | |
| CMRD3000 | 3000 | 24 | 800(double outlet) | 1.5 |
