Sequence Batch Reactor Food Processing SBR Wastewater Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CMRD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | SBR Decanter | Application: | Water Treatment |
|---|---|---|---|
| Material: | SS | Standard: | ISO |
| Capacity: | 100-3000m³/h | Structure: | Compact Connection |
| High Light: | sequential batch reactor,sequence batch reactor |
||
Product Description

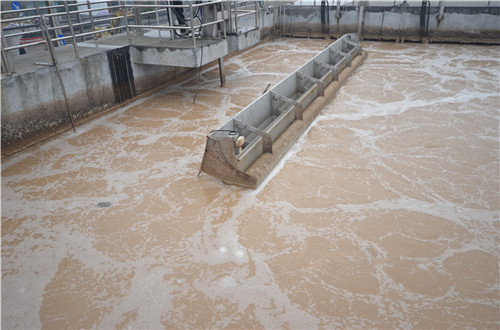

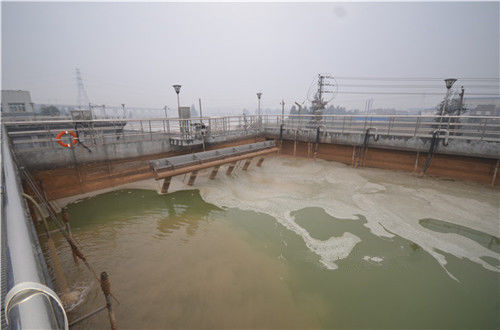

Foods processing wastewater SBR Sys Revolving Decanter ,Treatment flow100-3000m³/h
Feasures
• Flexible connection of the decanter to the outflow pipe in the reactor and a reliable
floating construction.
• Decanting holes (inflow into the decanter) are placed under the water surface.
• Decanting holes are spread equally over the whole area of the decanter.
• Patented automatic closing mechanism based on gravitation and flow.
• Designed without conventional valves and pumps.
Benefits
• Free movement in vertical direction, maximum distance from sludge layer during sedimentation
and decanting.
• Floating sludge does not influence effluent quality.
• Low velocity of flow resulting in low risk for occurrence of whirls and sludge waste.
• Prevention of sludge penetration into outflow pipe.
• A minimum of maintenance work and no electrical equipment.
| Model | Treatment flow(m³/h) | Decant depth(m) | Effluent weir length(m) | Effluent pipe diameter(mm) | Drive power(kw) |
| CMRD100 | 100 | 1~3 | 1 | 200 | 0.37 |
| CMRD200 | 200 | 2 | 300 | 0.37 | |
| CMRD300 | 300 | 2.7 | 350 | 0.37 | |
| CMRD400 | 400 | 3.5 | 400 | 0.37 | |
| CMRD500 | 500 | 4.2 | 500 | 0.37 | |
| CMRD600 | 600 | 5.2 | 500 | 0.55 | |
| CMRD800 | 800 | 7 | 600 | 0.55 | |
| CMRD1000 | 1000 | 8.2 | 600 | 1.1 | |
| CMRD1250 | 1250 | 10 | 700 | 1.1 | |
| CMRD1500 | 1500 | 12 | 600(double outlet) | 1.1 | |
| CMRD1750 | 1750 | 14.5 | 600(double outlet) | 1.1 | |
| CMRD2000 | 2000 | 16 | 700(double outlet) | 1.1 | |
| CMRD2500 | 2500 | 20 | 700(double outlet) | 1.1 | |
| CMRD3000 | 3000 | 24 | 800(double outlet) | 1.5 |
