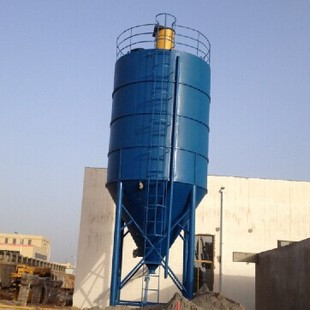

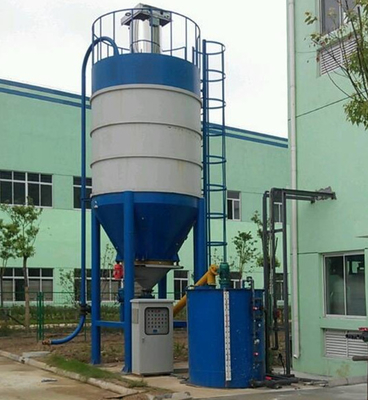

CSH Automatic Powder Feeding Chemical Dosing Equipment For Mineral Lime Dosing System
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Chemical Dosing Equipment | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 200-10940L/h | ||
| High Light: | automatic chemical dosing system,polymer preparation unit |
||
Product Description
Application
■ It is applied to adjust the PH water treatment environment; to dose lime in water works, sewage treatment plants and other municipal water treatment enterprises; to dose lime in the industrial sewage and recycling water treatment; and to dose lime in the industrial production and industrial and mining enterprises.
Advantages
■ Automatic dust collection in feeding
■ Lime silo level display
■ Arch-eliminating and dehumidification design
■ Blanking through mechanical vibration and transportation
■ Quantitative discharging
■ Mechanical mixing and emulsification
■ Corrosion-resistance, and corrosion-resistant chemical pump dosing
■ Automatic pump body and pipeline washing system
■ System PLC process control
| Model | Silo Diameter D/Total Height H |
Silo Silo Bottom Diameter
|
Feeding Spiral Diameter / Length |
Dissolving Tank Diameter D1 / Height H1
|
Total Motor Power (KW) |
Covering Area L x W
|
| CSH10 | 1.9 m/5.6m | 0.6m | 129mm/2.8m | 1 m/1.3m | 6 |
4.5m×2m
|
| CSH20 | 1.9m/6.8m | 0.6m | 129mm/4.5m | 1.7m/1.5m | 7 |
6.2m×2.5m
|
| CSH30 | 2.5m/5.6m | 1.1m | 129mm/5m | 1.8m/1.5m | 8 | 7.5m×2.5m |
| CSH40 | 2.5m/7.2m | 1.1m | 150mm/5m | 1.8m/1.8m | 8 | 7.5m×2.5m |
| CSH50 | 2.5m/8m | 1.1m | 150mm/5.6m | 2 m/1.8m | 10 | 7.5m×2.5m |
| CSH60 | 3m/7m | 1.1m | 150mm/5.6m | 2m/2m | 10 | 8.5m×2.8m |
| CSH70 | 3m/8m | 1.1m | 168mm/6m | 2m/2m | 12 | 8.5m×2.8m |
| CSH80 | 3m/8.5m | 1.1m | 168mm/6m | 2m/2m | 12 | 8.5m×2.8m |
| CSH100 | 3.5m/8m | 1.3m | 168mm/6m | 2.5 m/2.2m | 15 | 10m×3m |
