PAC / PAM CPT Chemical Dosing System Automatic Dosage Device for waste water treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CPT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 20pcs per month |
|
Detail Information |
|||
| Product Name: | Chemical Dosing Equipment | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 200-10940L/h | Structure: | Compact Connection |
| High Light: | automatic chemical dosing system,polymer preparation unit |
||
Product Description

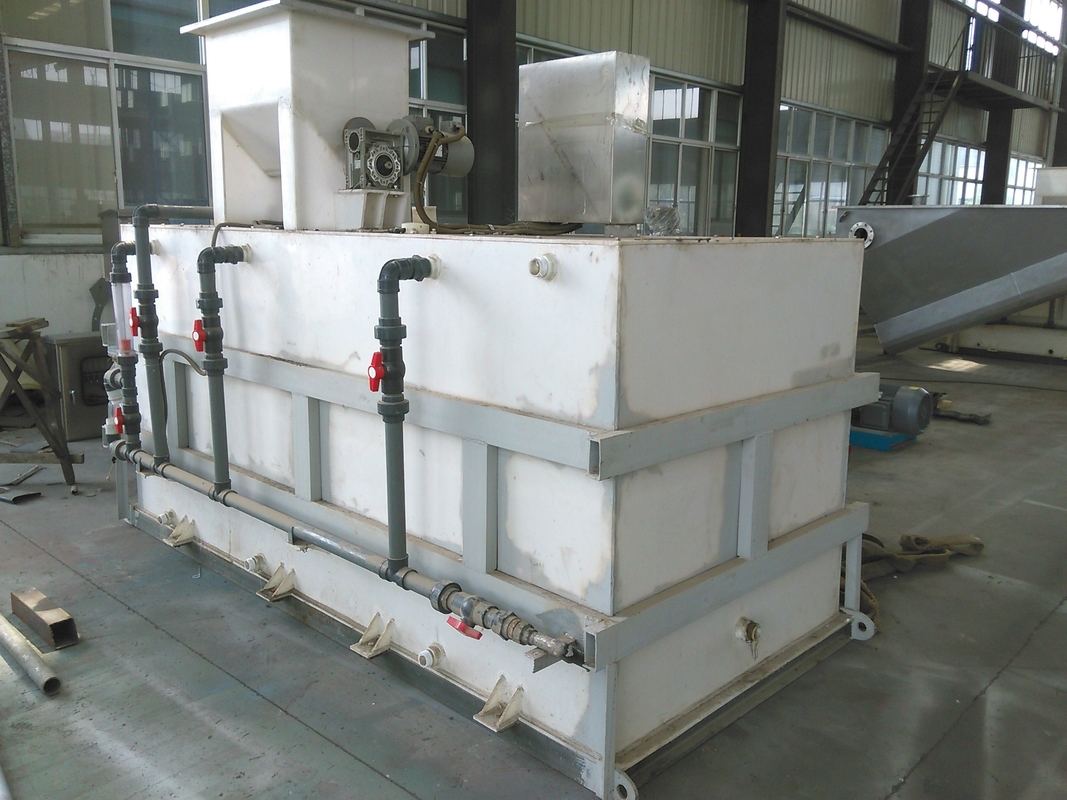

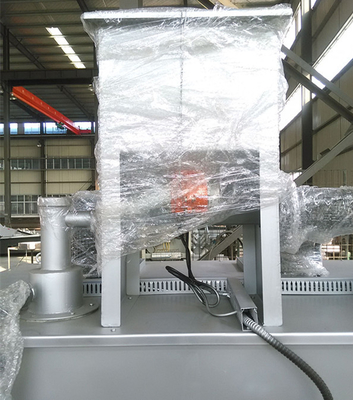

PAC or PAM CPT Automatic Dosage Device for waste water treatment
Application
■ The apparatus is applied to prepare and dose the polymeric organic flocculant (polyacrylamide, PAM), users only need to directly dose dry drug powder to the equipment silo, which makes it possible to realize the full-automatic feeding, dissolution, curing, storage, dosing in a metering manner, etc.
Advantages
■ The mixing system is optimized, which leads to more sufficient dissolution and lower energy consumption;
■ The solution concentration can be regulated by the quantity of intake water and the dosage of dry powder, which makes it much more adaptable;
■ More auxiliary functions can meet different users’ demands.
| Model | CPT500 | CPT1000 | CPT1500 | CPT3000 | CPT5000 | CPT8000 |
| The Maximum Preparation Quantity (l/h) | 500 | 1000 | 1500 | 3000 | 5000 | 8000 |
| Effective Container Volume (l) | 600 | 1400 | 2000 | 3600 | 6000 | 9500 |
| The Maximum Dosage of PAM (kgDS/h) | 1.5 | 3.0 | 4.0 | 8.0 | 16.0 | 32.0 |
| Inlet Flow (m3/h) | 2.0 | 4.0 | 5.0 | 10.0 | 20.0 | 40.0 |
| Inlet Pressure (MPa) | 0.2~0.5 | |||||
| Power of Dry Powder Machine (kw) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| Mixer Power (kw) | 0.55 | 2×0.55 | 2×0.75 | 2×1.1 | 2×1.5 | 2×1.5 |
| Volume of Powder Silo (l) | 50 (Optional: 80, 100, 200) | |||||
notes:
1. The curing time of PAM at the aforesaid preparation quantity: 60min;
2. The dry powder dosage ability of PAM is tested under specific conditions, and different powders may be different;
3. The conventional material for the tank and the mixer: stainless steel 304;
4. The conventional material for the pipeline system: U-PVC;
5. Should you have special requirements and need customized products, please consult Cheneng Environment (Wuxi Cheneng Environment Engineering Equipment Co., Ltd)
