Full Automatic Chemical Dosing System and flocculant dosing system ISO Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CPD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Chemical Dosing Equipment | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 200-10940L/h | Structure: | Compact Connection |
| High Light: | polymer preparation unit,chemical dosing equipment |
||
Product Description

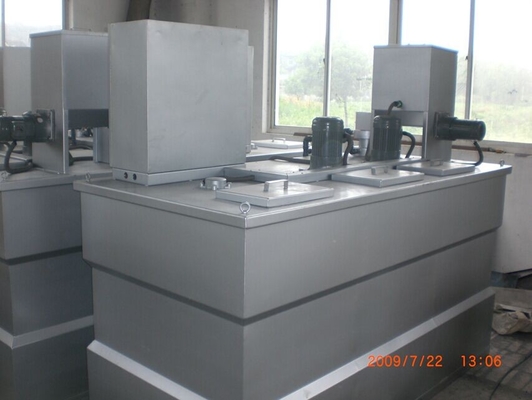

Full Automatic Chemical Dosing System and flocculant dosing system ISO Standard
Specifications
1. This equipment is designed for preparation of solution of powdered flocculant.
2. Full-automatic.
We can accustom the size of the device to the customer’s request in accordance with the required capacity of the unit. The unit is suitable for continuous operation.
Basic structure of the flocculant preparation unit:
A three-chamber tank
Screw conveyor with a hopper for dosing of powdered flocculant
Agitators – 2 pcs
Connecting pipes with automatically and manually operated armatures
Water level sensors for automatic control
Dosing screw conveyor is driven by electromotor with a gear unit. The rate size of powdered flocculant is controlled by timing control of the screw operation.
The unit together with the flocculant dosing pump can be delivered in required suitable kind of material according to the customer’s requests.
|
Model |
CPD200 |
CPD430 |
CPD958 |
CPD1340 |
CPD2660 |
CPD4165 |
CPD6660 |
CPD10940 |
|
Capacity(L/h) |
200 |
430 |
958 |
1340 |
2660 |
4165 |
6660 |
10940 |
|
Tank volume(L) |
350 |
750 |
1580 |
2200 |
4050 |
6170 |
9610 |
15780 |
|
Aging time(h) |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
1.0~1.5 |
|
Total power |
0.54 |
0.92 |
1.3 |
1.7 |
2.4 |
3.2 |
4.8 |
6.4 |
|
Empty weight(kg) |
250 |
350 |
480 |
560 |
790 |
1050 |
1200 |
1450 |
