DAF clarifier wastewater and sewage treatment for Food , Pharmaceutical Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | DAF Clarifier | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 1-100m³/h | Structure: | Compact Connection |
| High Light: | wastewater and sewage treatment,DAF Separator |
||
Product Description

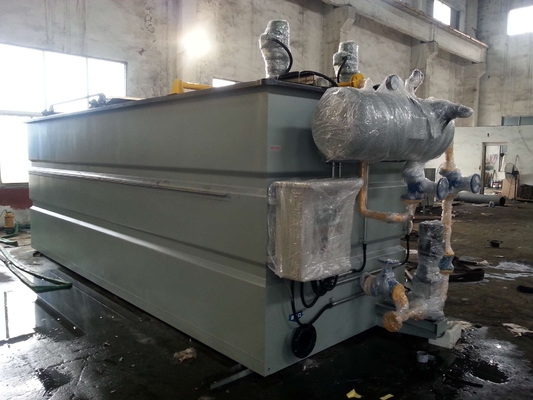

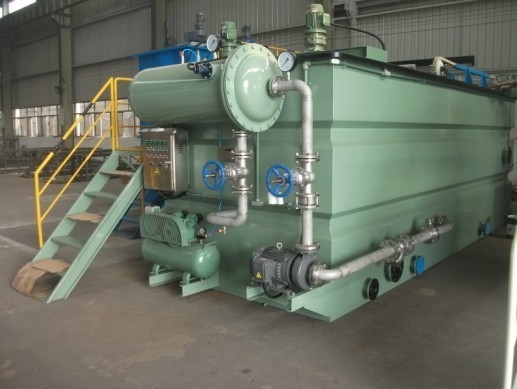

DAF clarifier wastewater and sewage treatment for Food , Pharmaceutical Industry
Features of SOR
1. Design treatment capacity:1-100 m3/h.
2. High-rate clarifier for high SS water (light particles, oil and colloid).
3. Fully(100%) manufactured in the factory, and no need secondory welding. It costs 3h for 2 manpower to assemble.
4. Indoor or outdoor layout (environmental temperature should be over 0°C).
5. Apply to automatic & continious operation.
6. Design life: Carbon steel material: >10years;
Stainless steel material: >20years.
Use
Corresponding water quality: high SS, and the specific gravity of suspended solids or contaminants is generally slight greater than water, settle effectively and have a pretty clear tendency to precipitate, like:
Oil and Fats, Food Industry effluents with high solids concentration,
Sludge Thickening,
Galvanizing Electroplanting,
Pharmaceutical Industry,
Leather Industry,etc.
Specifications
|
Type |
Treatment |
Tank |
Tank |
Tank |
Pump |
Air compressor |
Skimmer |
|
SOR-1 |
1m³/h |
1400 |
550 |
1100 |
0.55 |
0.55 |
0.18 |
|
SOR-2 |
2 m³/h |
1800 |
700 |
1300 |
0.55 |
0.55 |
0.18 |
|
SOR-3 |
3 m³/h |
2800 |
800 |
1900 |
0.75 |
0.75 |
0.37 |
|
SOR-5 |
5 m³/h |
3000 |
1000 |
1900 |
1.1 |
0.75 |
0.37 |
|
SOR-10 |
10 m³/h |
4000 |
1200 |
2100 |
1.5 |
0.75 |
0.37 |
|
SOR-15 |
15m³/h |
4500 |
1500 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-20 |
20m³/h |
4500 |
1800 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-30 |
30m³/h |
5500 |
2000 |
2100 |
3.0 |
0.75 |
0.37 |
|
SOR-40 |
40m³/h |
6000 |
2200 |
2100 |
5.5 |
0.75 |
0.37 |
|
SOR-50 |
50m³/h |
6000 |
2700 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-60 |
60m³/h |
7000 |
2800 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-70 |
70 m³/h |
8000 |
3000 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-80 |
80m³/h |
9000 |
3200 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-100 |
100 m³/h |
9000 |
3600 |
2100 |
15 |
2.2 |
0.55 |
Carbon Steel surface finish and corrosion treatment
1. Sand Blasting/ Shot Peening, ISO Sa≥2.5,epoxy Zinc Rich Primer, 50μm/coat.
2. Internal: a) Epoxy Zinc-rich Primer, 50μm/coat×1;
b) Epoxy Mastic Paint, 100μm/coat×2~3;
c) Total film thickness: ≥250μm.
3. External: a) Epoxy Zinc-rich Primer, 50μm/coat×1;
b) Epoxy Micaceous Iron Intermediate Paint, 50μm/coat×1;
c) Polyurethane Finish, 50μm/coat×1;
d) Total film thickness: ≥150μm.
Spraying Method: High-Pressure Airless Spraying
Device Color: Light Sea Blue (PANTONE No.RAL5015),or according to customers’ demands.
