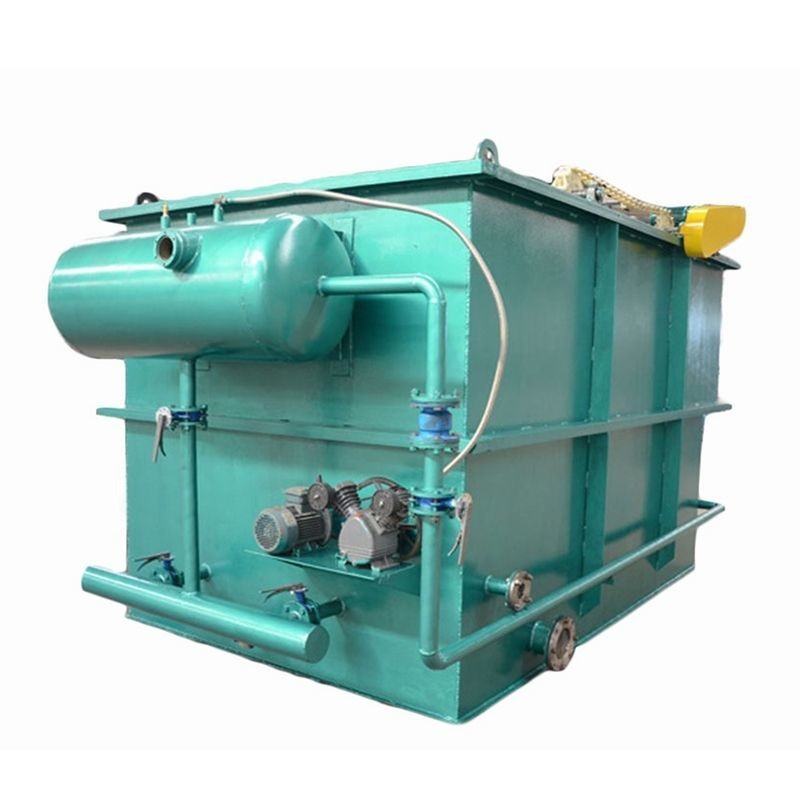

Inclined Plates DAF Device Clarifier Dissolved Air Flotation
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | DAF Clarifier | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 1-100m³/h | Structure: | Compact Connection |
| High Light: | Inclined Plates DAF Device,Inclined Plates Dissolved Air Flotation Device,SS dissolved air flotation clarifier |
||
Product Description
DAF Device Clarifier Dissolved Air Flotation with Inclined Plates
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc.
|
Product name
|
Dissolved air flotation
|
|
Application
|
Wastewater treatment
|
|
Maximum capacity
|
20 m³/h
|
|
Net weight
|
4t
|
|
Running weight
|
27t
|
|
Power
|
6.69Kw
|
|
Motor
|
Bauer, Nissei, Sew
|
|
Material
|
Stainless steel or carbon steel
|
|
Service life
|
> 10 Years
|
|
Warranty
|
2 Years
|
|
Operation
|
24 Hours Automatic Running
|
|
After-sales service provided
|
Engineers available to service machinery overseas
|
|
Payment
|
Paypal, T/T, Western Union, Escrow, MoneyGram
|
|
Type |
Treatment |
Tank |
Tank |
Tank |
Pump |
Air compressor |
Skimmer |
|
SOR-1 |
1m³/h |
1400 |
550 |
1100 |
0.55 |
0.55 |
0.18 |
|
SOR-2 |
2 m³/h |
1800 |
700 |
1300 |
0.55 |
0.55 |
0.18 |
|
SOR-3 |
3 m³/h |
2800 |
800 |
1900 |
0.75 |
0.75 |
0.37 |
|
SOR-5 |
5 m³/h |
3000 |
1000 |
1900 |
1.1 |
0.75 |
0.37 |
|
SOR-10 |
10 m³/h |
4000 |
1200 |
2100 |
1.5 |
0.75 |
0.37 |
|
SOR-15 |
15m³/h |
4500 |
1500 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-20 |
20m³/h |
4500 |
1800 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-30 |
30m³/h |
5500 |
2000 |
2100 |
3.0 |
0.75 |
0.37 |
|
SOR-40 |
40m³/h |
6000 |
2200 |
2100 |
5.5 |
0.75 |
0.37 |
|
SOR-50 |
50m³/h |
6000 |
2700 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-60 |
60m³/h |
7000 |
2800 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-70 |
70 m³/h |
8000 |
3000 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-80 |
80m³/h |
9000 |
3200 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-100 |
100 m³/h |
9000 |
3600 |
2100 |
15 |
2.2 |
0.55 |
