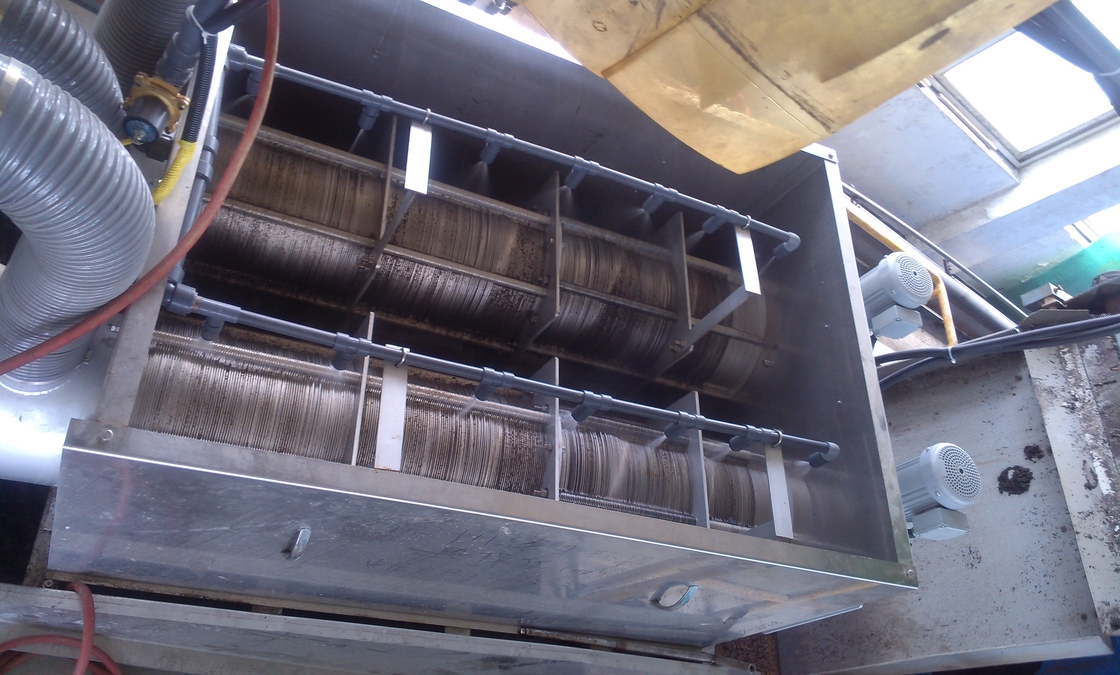

Multi - ring screw press Sludge Dewatering Equipment for Wastewater Treatment Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Screw Press | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 3-300m³/h | Structure: | Compact Connection |
| High Light: | dewatering screw press machine,sludge removal equipment |
||
Product Description
Multi - ring screw press Sludge Dewatering Equipment for Wastewater Treatment Plant
Specifications:
|
Model |
Dry solids capacity |
Length (mm) |
Width (mm) |
Depth (mm) |
Net weight (kg) |
Operating weight (kg) |
|
CSD-101 |
3~5m³/h |
1816 |
756 |
1040 |
190 |
280 |
|
CSD-131 |
6~10 m³/h |
1969 |
756 |
1040 |
205 |
300 |
|
CSD-132 |
12~20 m³/h |
2069 |
910 |
1040 |
275 |
420 |
|
CSD-202 |
18~30m³/h |
2500 |
935 |
1270 |
470 |
680 |
|
CSD-301 |
30~50 m³/h |
3255 |
985 |
1600 |
820 |
1230 |
|
CSD-302 |
60~100m³/h |
3455 |
1295 |
1600 |
1350 |
2050 |
|
CSD-303 |
90~150m³/h |
3605 |
1690 |
1600 |
1820 |
2810 |
|
CSD-352 |
120~200m³/h |
4140 |
1550 |
2250 |
2450 |
3400 |
|
CSD-353 |
180~300m³/h |
4420 |
2100 |
2250 |
3350 |
4850 |
Description:
The CSD multi-ring screw press developed by CHENENG utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment, more advanced than the traditional dewatering equipment which are easily blocked, unsuitable for low-concentrated sludge and oily sludge, of high consumption and difficult to operate, well eliminate these problems and are of efficiency and power saving.
The multi-ring screw press, which is controlled by the electric control cabinet, allows automatic continuous operation of sludge flocculation, thickening, dewatering and filtrate discharging.
Applications:
1. Abattoirs
2. Cheese processing
3. Container washing
4. Dairies
5. Food processing
6. Fish processing
7. Metal removal
8. Meat industry
9. Poultry processing
10. Pulp& paper
11. Small goods
12. Tanneries
13. Vegetable industries
Competitive Advantage:
|
Low operation cost |
Less than 40% of belt filter press, 20% of centrifugal machine |
|
Power-saving |
Less than 5% of centrifugal machine |
|
Water-saving |
No more than 0.1% of belt filter press |
|
Compact |
Saving more than 60% of investment for dewatering space |
|
Non-clogging |
Processing the fats& oils and fiber sludge perfectly |
