Chemical Plants 100m3/H Liquid Solid Separation DAF Clarifier Filter System
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | DAF Clarifier | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 1-100m³/h | Structure: | Compact Connection |
| High Light: | 100m3/h daf filter system,liquid solid daf filter system,liquid solid separation DAF Clarifier |
||
Product Description

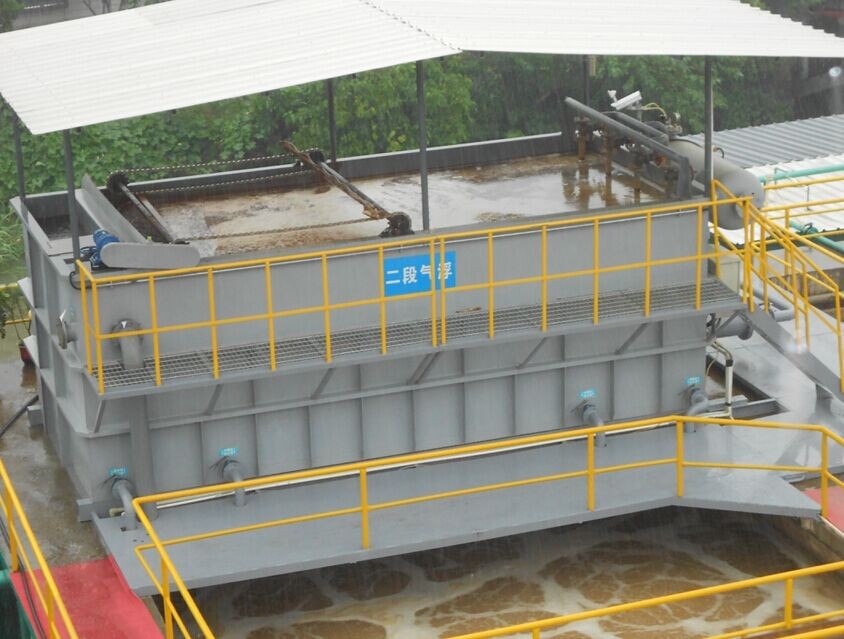

Dissolved air flotation DAF Clarifier for solid-liquid or liquid - liquid separation
SOR series dissolved air flotation machine is mainly for solid-liquid or liquid-liquid separation. Large sum of microbubbles produced by the dissolving and releasing system adhere to solid or liquid particles with the same density as wastewater to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
Dissolved Air Flotation (DAF) is well-suited for liquid-solid separation in many industries, as well as for separation of free oils and greases. Applications include the pretreatment of a variety of waste streams, including those from:
1pcs
Poultry processing plants
Dairy processors
Metal fabricators
Pulp and paper mills
Chemical plants
Textile plants
Slaughterhouse
Fish process washing water
Pet food processors
|
Type |
Treatment |
Tank |
Tank |
Tank |
Pump |
Air compressor |
Skimmer |
|
SOR-1 |
1m³/h |
1400 |
550 |
1100 |
0.55 |
0.55 |
0.18 |
|
SOR-2 |
2 m³/h |
1800 |
700 |
1300 |
0.55 |
0.55 |
0.18 |
|
SOR-3 |
3 m³/h |
2800 |
800 |
1900 |
0.75 |
0.75 |
0.37 |
|
SOR-5 |
5 m³/h |
3000 |
1000 |
1900 |
1.1 |
0.75 |
0.37 |
|
SOR-10 |
10 m³/h |
4000 |
1200 |
2100 |
1.5 |
0.75 |
0.37 |
|
SOR-15 |
15m³/h |
4500 |
1500 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-20 |
20m³/h |
4500 |
1800 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-30 |
30m³/h |
5500 |
2000 |
2100 |
3.0 |
0.75 |
0.37 |
|
SOR-40 |
40m³/h |
6000 |
2200 |
2100 |
5.5 |
0.75 |
0.37 |
|
SOR-50 |
50m³/h |
6000 |
2700 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-60 |
60m³/h |
7000 |
2800 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-70 |
70 m³/h |
8000 |
3000 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-80 |
80m³/h |
9000 |
3200 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-100 |
100 m³/h |
9000 |
3600 |
2100 |
15 |
2.2 |
0.55 |
