Commercial Package Membrane MBR water treatment plant for pharmaceutical industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | MBR Package Treatment Plant | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| High Light: | mbr sewage treatment,membrane bioreactor wastewater treatment |
||
Product Description

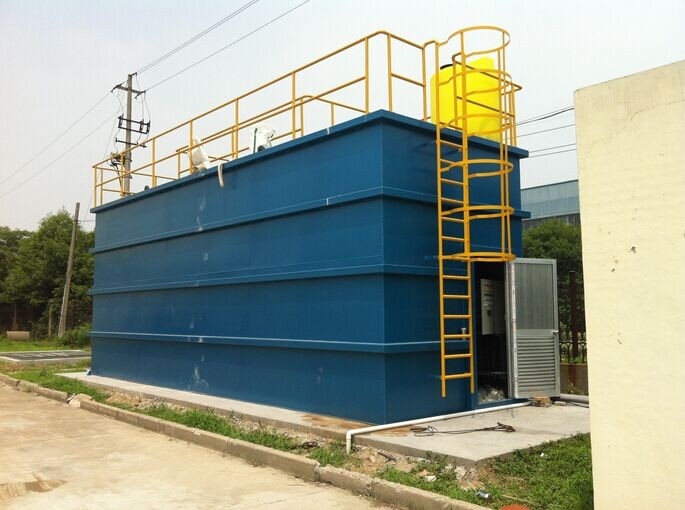

package mbr water treatment plant project for pharmaceutical industry

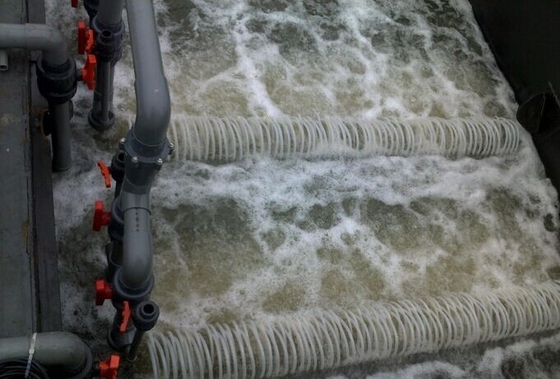

MBR (Membrane BioReactor)
1. Industrial/Commercial wastewater treatment
2. Domestic sewage treatment plant
3. Chemical wastewater treatment
4. Wastewater/Sewage recycle/reuse
5. All the product that we can customize according to customers' requirements
Competitive Advantage:
Standard ISO chamber
Compact footprint
High quality effluent
Provision for a safer environment
Operates even in extreme condition
Our services:
We are pleasure to provide design service for all water& waste water solution, and Technical Support(Guidance) for set-up, installation, test-run, commission etc at site.
Specifications:
|
Type size |
Treatment capacity |
Membrane size |
Qty (pcs) |
Module (units) |
Total Installed power |
Operating power (KW) |
Tank size(mm) |
No.s of tank |
|
CRS-25 |
25 m³/d |
PURE-100 |
80 |
1 |
7.8 |
3.35 |
9000*2400*2500 |
1 |
|
CRS-40 |
40 m³/d |
PURE-100 |
100 |
1 |
7.8 |
3.35 |
7000*2400*2500 |
1 |
|
CRS-50 |
50 m³/d |
PURE-100 |
160 |
2 |
9.75 |
5.25 |
9000*2400*2500 |
1 |
|
CRS-80 |
80 m³/d |
PURE-100 |
200 |
2 |
13.8 |
5.25 |
10000*2400*2500 |
1 |
|
CRS-100 |
100 m³/d |
PURE-100 |
140 |
3 |
19.9 |
10.7 |
10000*2400*2500 |
1 |
|
CRS-120 |
120 m³/d |
PURE-100 |
300 |
3 |
21.75 |
13.55 |
10000*2400*2500 |
1 |
|
CRS-160 |
160 m³/d |
PURE-100 |
400 |
4 |
27.75 |
16.55 |
12000*2400*2500 |
1 |
|
CRS-200 |
200 m³/d |
PURE-100 |
500 |
5 |
30.85 |
18.25 |
7000*2400*2500 |
2 |
|
CRS-240 |
240 m³/d |
PURE-100 |
600 |
6 |
38.9 |
23.2 |
8500*2400*2500 |
2 |
|
CRS-320 |
320 m³/d |
PURE-100 |
800 |
8 |
38.9 |
23.2 |
10000*2400*2500 |
2 |
|
CRS-400 |
400 m³/d |
PURE-100 |
1000 |
10 |
30.35 |
15.75 |
11500*2400*2500 |
2 |
|
CRS-480 |
480 m³/d |
PURE-100 |
1200 |
12 |
33.65 |
15.9 |
13500*2400*2500 12000*2400*2500 |
1 1 |
|
CRS-560 |
560 m³/d |
PURE-100 |
1400 |
14 |
43.85 |
21 |
8500*2400*2500 |
3 |
|
CRS-640 |
640 m³/d |
PURE-100 |
1600 |
16 |
41.85 |
20 |
11500*2400*2500 |
3 |
|
CRS-720 |
720 m³/d |
PURE-100 |
1800 |
18 |
54.85 |
26 |
12000*2400*2500 |
