Aerobic microbiological MBR Water Treatment System High efficiency with PLC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | MBR Package Treatment Plant | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 25-720m³/d | Structure: | Compact Connection |
| High Light: | mbr sewage treatment,membrane water treatment plant |
||
Product Description
MBR System Sewage Treatment System Waste Water Recycling System MBR Modular
Wastewater Treatment MBR System :
This MBR System (Membrane Bioreactor) Treatment Plant is designed for municipal and industrial wastewater treatment, the combination of a membrane process like microfiltration or ultrafiltration with a suspended .The MBR system provides an aerobic microbiological treatment of waste water in which good efficiency is acquired and purified water of good quality is achieved.
MBR System Including:

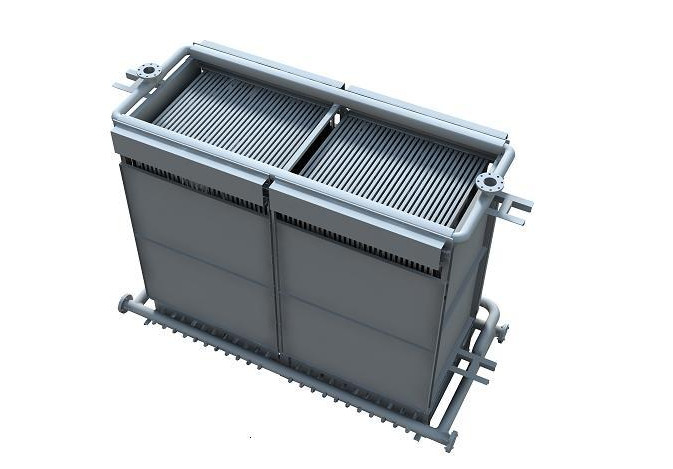

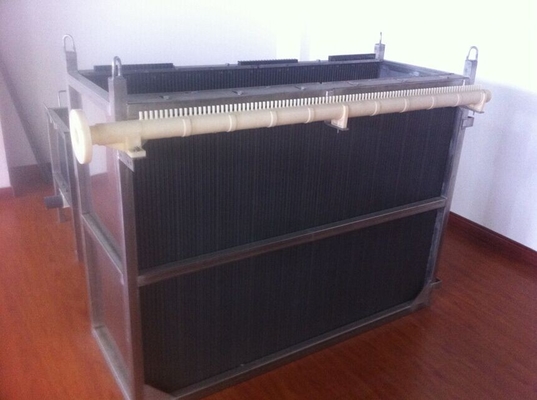

MBR membrane and MBR Skid
Collector Pipe and Aerator System
Air Blower
Saution Pump
Feed Water Pump
Dosing pump and system
PLC Control system
Specifications:
|
Type size |
Treatment capacity |
Membrane size |
Qty (pcs) |
Module (units) |
Total Installed power |
Operating power (KW) |
Tank size(mm) |
No.s of tank |
|
CRS-25 |
25 m³/d |
PURE-100 |
80 |
1 |
7.8 |
3.35 |
9000*2400*2500 |
1 |
|
CRS-40 |
40 m³/d |
PURE-100 |
100 |
1 |
7.8 |
3.35 |
7000*2400*2500 |
1 |
|
CRS-50 |
50 m³/d |
PURE-100 |
160 |
2 |
9.75 |
5.25 |
9000*2400*2500 |
1 |
|
CRS-80 |
80 m³/d |
PURE-100 |
200 |
2 |
13.8 |
5.25 |
10000*2400*2500 |
1 |
|
CRS-100 |
100 m³/d |
PURE-100 |
140 |
3 |
19.9 |
10.7 |
10000*2400*2500 |
1 |
|
CRS-120 |
120 m³/d |
PURE-100 |
300 |
3 |
21.75 |
13.55 |
10000*2400*2500 |
1 |
|
CRS-160 |
160 m³/d |
PURE-100 |
400 |
4 |
27.75 |
16.55 |
12000*2400*2500 |
1 |
|
CRS-200 |
200 m³/d |
PURE-100 |
500 |
5 |
30.85 |
18.25 |
7000*2400*2500 |
2 |
|
CRS-240 |
240 m³/d |
PURE-100 |
600 |
6 |
38.9 |
23.2 |
8500*2400*2500 |
2 |
|
CRS-320 |
320 m³/d |
PURE-100 |
800 |
8 |
38.9 |
23.2 |
10000*2400*2500 |
2 |
|
CRS-400 |
400 m³/d |
PURE-100 |
1000 |
10 |
30.35 |
15.75 |
11500*2400*2500 |
2 |
|
CRS-480 |
480 m³/d |
PURE-100 |
1200 |
12 |
33.65 |
15.9 |
13500*2400*2500 12000*2400*2500 |
1 1 |
|
CRS-560 |
560 m³/d |
PURE-100 |
1400 |
14 |
43.85 |
21 |
8500*2400*2500 |
3 |
|
CRS-640 |
640 m³/d |
PURE-100 |
1600 |
16 |
41.85 |
20 |
11500*2400*2500 |
3 |
|
CRS-720 |
720 m³/d |
PURE-100 |
1800 |
18 |
54.85 |
26 |
12000*2400*2500 |
3 |
