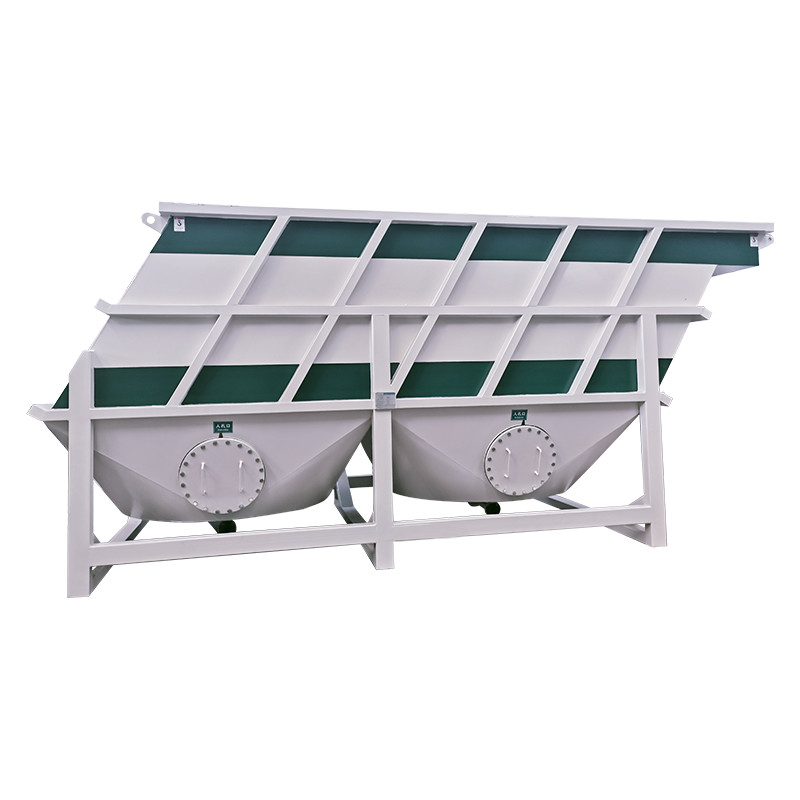

Tube Settler Sedimentation Tank Lamella Plate Clarifier For Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SAL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15pcs per month |
|
Detail Information |
|||
| Product Name: | Lamella Clarifier | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 10-100m³/h | Structure: | Compact Connection |
| High Light: | Sedimentation Tank lamella plate clarifier,Water treatment lamella plate clarifier,Sedimentation Tank lamella plate settler |
||
Product Description
Tube Settler Sedimentation Tank Lamella Clarifier
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. The inclined tube and inclined plate precipitation water purification method is formed by placing the sludge suspension layer above the inclined tube inclined plate with an inclination angle of 60 degrees, so that the suspended matter in the raw water accumulates on the bottom surface of the inclined tube. After that, a thin mud layer is formed, which slides back to the mud slag suspension layer after relying on the action of gravity, and then sinks into the mud collecting bucket, and then is discharged into the sludge pool by the mud discharge pipe for treatment or comprehensive utilization. The clean water above will gradually rise to the water collection pipe for discharge, which can be directly discharged or reused.
Specifications:
|
Type size |
Treatment Capacity |
Tank Length (mm) |
Tank Width (mm) |
Tank Height (mm) |
|
SAL-10 |
10m³/h |
2400 |
1200 |
3500 |
|
SAL-15 |
15 m³/h |
3000 |
1200 |
4000 |
|
SAL-20 |
20m³/h |
3000 |
1800 |
4000 |
|
SAL-35 |
35m³/h |
3400 |
1800 |
4500 |
|
SAL-65 |
65 m³/h |
4300 |
1800 |
5000 |
|
SAL-100 |
100m³/h |
4600 |
2700 |
5500 |
Description:
The SAL lamella clarifier uses the time proven concept of inclined plate clarification. This type of clarifier uses gravity in conjunction with the projected settling area of the 60 degree angle parallel plates to settle solids from the pre-treated liquid flow. This treated liquid flows first to the flocculation tank where polymer is added to promote floc growth, then down to the bottom of the clarifier and up through the plate pack(s) while the solids settle out to the bottom sludge cone or cones – depending upon the size. The solids are intermittently taken from the bottom cone tank for further setting of the solids and then, finally to a filter press for final dewatering.
Applications:
Municipal
- Filtration Pretreatment
- Backwash Water Treatment
- Primary and Secondary Settling
- Tertiary Treatment
Industrial
- Metal Hydroxide Wastewater
- Industrial Process Water
- Pressure / Vacuum Filtrate Clarification
- Specific Minerals Applications
Competitive Advantage:
1.Compact footprint is up to 1/10 the size of a conventional sedimentation tank
Flow enters through the side of the plates rather than underneath providing uninterrupted settling
2.Even pressure drop across collection channels makes the most of available plate area and creates uniform flow distribution
3.Standard sizing reduces engineering lead time and costs
4.Pre-engineered drawings and specifications shorten project schedules
