High Efficieny Dissolved Air Flotation Machine / DAF system water treatment equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 pcs per month |
|
Detail Information |
|||
| Product Name: | Product Name | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 80-800m³/h | ||
| High Light: | dissolved air flotation equipment,daf system water treatment |
||
Product Description
High Efficieny Dissolved Air Flotation Machine / DAF system water treatment equipment
Product Description

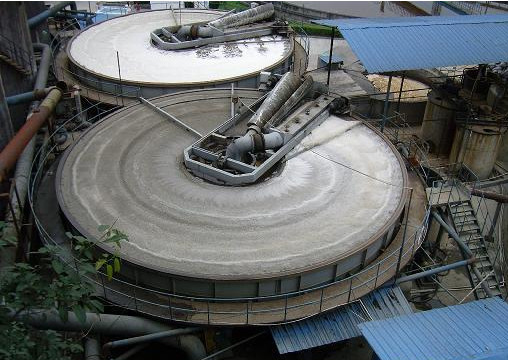

CHENENG SSC Series Shallow Air Floatation Machine is designed by the principle of "shallow tank theory" and "zero-speed", integrates flocculation, air flotation, skimming, sedimentation and sludge scraping, symbols high-effective and energy-saving water purifying device.
First, it is used for waterworks to remove algal and descend turbidity with lake water as water source.
Second, it is used for industrial water treatment such as petrochemical, paper mill, textile, printing, electroplate, leather, food industries etc.
Third, it is used for recovery of valuable products from sewage such as fiber recovery from paper mill water and wood pulp water.
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Type | Treatment | Diameter | Drive motor | Air compressor consumption | Pump power | Skimmer power |
SSC-80 | 80m³/h | 5000 | 1.5 | 1.5 | 7.5 | 1.1 |
SSC-100 | 100m³/h | 6000 | 1.5 | 2.2 | 15 | 1.1 |
SSC-150 | 150m³/h | 7000 | 1.5 | 2.2 | 15 | 1.1 |
SSC-200 | 200m³/h | 8000 | 2.2 | 4 | 22 | 1.5 |
SSC-250 | 250m³/h | 9000 | 2.2 | 4 | 22 | 1.5 |
SSC-300 | 300m³/h | 10000 | 2.2 | 5.5 | 30 | 1.5 |
SSC-400 | 400m³/h | 11000 | 2.2 | 5.5 | 37 | 1.5 |
SSC-500 | 500m³/h | 12000 | 3 | 7.5 | 45 | 2.2 |
SSC-600 | 600m³/h | 13000 | 3 | 7.5 | 45 | 2.2 |
SSC-700 | 700m³/h | 14000 | 3 | 7.5 | 55 | 2.2 |
SSC-800 | 800m³/h | 15000 | 3 | 11 | 75 | 2.2 |
