CAF cavitation water treatment device for remove solid suspended particles , grease
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | ORF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Cavitation Air Flotation | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 1-500m³/h | Structure: | Compact Connection |
| High Light: | dissolved air flotation equipment,daf system water treatment |
||
Product Description
CAF cavitation water treatment device for remove solid suspended particles , grease
Specifications
1. CAF
2. Cavitation air flotation machine
3. widely used to remove solid suspended particles, grease and jelly etc.
Product Description
I. CAF can cut your waste treatment cost by 40-90%

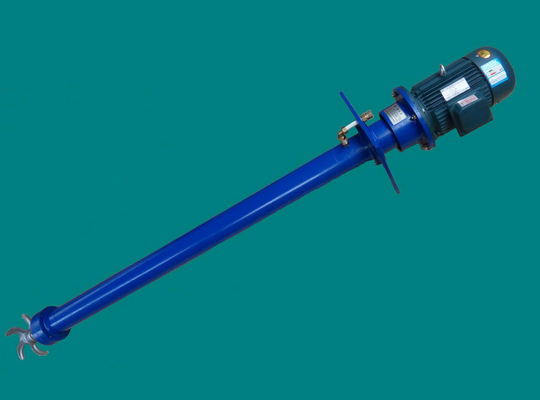

CAF System is a cavitation air flotation process. Microbubbles are injected into the wastewater without first
having to dissolve the air. Only air passes through the ejection nozzles. therefore no blockage can occur.
No need for air compressors,pumps, air saturation tanks.
II. CAF Features
1. Self contained system
2. rectangular,minimum space requirement
3. site preparation,construction,cost are minimum.
III. CAF Specification
|
Type |
Treatment |
Tank |
Tank |
Tank |
Aerator |
Skimmer |
|
ORF-1 |
1m³/h |
1400 |
550 |
1100 |
0.37 |
0.18 |
|
ORF-3 |
3 m³/h |
2500 |
800 |
1300 |
1.5 |
0.37 |
|
ORF-5 |
5 m³/h |
2500 |
1000 |
1300 |
1.5 |
0.37 |
|
ORF-10 |
10 m³/h |
3000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-15 |
15 m³/h |
4000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-20 |
20m³/h |
5000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-30 |
30m³/h |
5000 |
1600 |
1800 |
2.2 |
0.37 |
|
ORF-40 |
40m³/h |
6000 |
1600 |
1800 |
2.2 |
0.37 |
|
ORF-50 |
50m³/h |
6000 |
1800 |
1800 |
4.4 |
0.37 |
|
ORF-75 |
75m³/h |
7000 |
2400 |
1800 |
4.4 |
0.55 |
|
ORF-100 |
100m³/h |
8000 |
2400 |
1800 |
4.4 |
0.55 |
|
ORF-150 |
150 m³/h |
11500 |
2400 |
1800 |
6 |
0.55 |
|
ORF-200 |
200m³/h |
15000 |
2400 |
1800 |
9 |
0.55 |
|
ORF-300 |
300 m³/h |
15000 |
3100 |
1800 |
12 |
0.55 |
|
ORF-400 |
400m³/h |
17000 |
3600 |
1800 |
12 |
0.55 |
|
ORF-500 |
500m³/h |
21000 |
4500 |
1800 |
15 |
1.10 |
