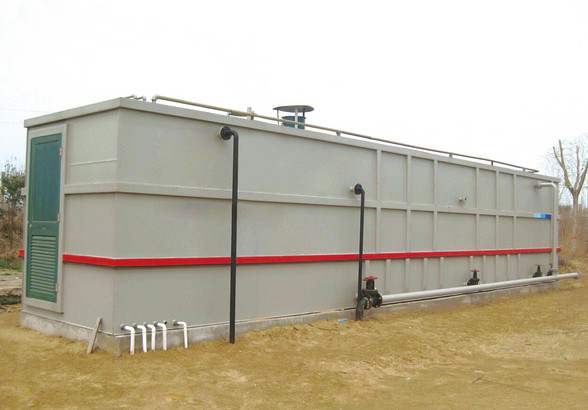

Package MBR Plant with PVDF material membrane for Domestic Sewage Treatment Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | MBR Package Treatment Plant | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Capacity: | 25-720m³/d | Structure: | Compact Connection |
| High Light: | package sewer treatment plant,packaged water treatment plants |
||
Product Description
Package MBR Plant with PVDF material membrane for Domestic Sewage Treatment Plant
Specifications
1. Package MBR Plant with PVDF material membrane
2. Touch Screen and PLC Control system
3. Ready for Opeartion Plant
Package MBR Plant for wastewater treatment and recycling
based on LITREE immersed membrane unit
LITREEcompany is biggest hollow fiber UF membrane manufacturer in China, weprovide quality pressure vessel UF module, integrated UF purifyingequipment, immersed membrane for MBR system, and we also is the firstbrand in Chinese residential UF filter market.
Advantages of MBR system:
MBRtechnics isa perfect integration by membrane separation technology andnormalbiological treatment. Instead traditional secondary sedimentationtank,sand filter tank by capillary hollow fiber UF membrane, andtheeffluent water quality can match reclaimed water reuse orReverseOsmosis input water standard. MBR system is very suitable forhighdischarge standard water treatment plant and old plantupgrades,transformation.
Technical instruction:

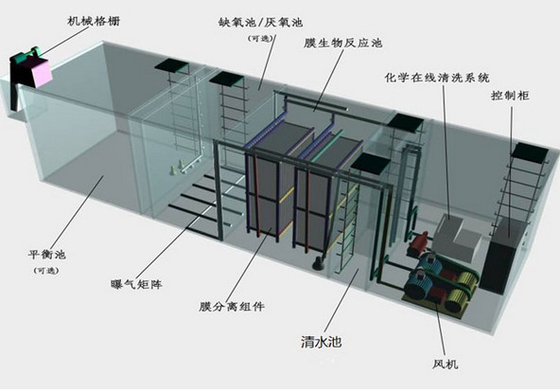

1. Compact system with CRS immersed membrane, SUS304 membrane tank, control PLC & touch screen, suction pump, backwash pump, air compressor and blower. Can realize automatically operation and clean.
2. Recirculated MBR system without biological treatment, the biological treatment should carried out before MBR.
3. System does not including backwash tank; and the MBR tank, system host and pipe network are dismounted for delivery. User should assemble and install on site based on the provided mounting diagram.
4. The whole system should consider a fine screen (2mm) as pretreatment, and a hair collector as per-filter in domestic wastewater treatment.
|
Type size |
Treatment capacity |
Membrane size |
Qty (pcs) |
Module (units) |
Total Installed power |
Operating power (KW) |
Tank size(mm) |
No.s of tank |
|
CRS-25 |
25 m³/d |
PURE-100 |
80 |
1 |
7.8 |
3.35 |
9000*2400*2500 |
1 |
|
CRS-40 |
40 m³/d |
PURE-100 |
100 |
1 |
7.8 |
3.35 |
7000*2400*2500 |
1 |
|
CRS-50 |
50 m³/d |
PURE-100 |
160 |
2 |
9.75 |
5.25 |
9000*2400*2500 |
1 |
|
CRS-80 |
80 m³/d |
PURE-100 |
200 |
2 |
13.8 |
5.25 |
10000*2400*2500 |
1 |
|
CRS100 |
100 m³/d |
PURE-100 |
140 |
3 |
19.9 |
10.7 |
10000*2400*2500 |
1 |
|
CRS120 |
120 m³/d |
PURE-100 |
300 |
3 |
21.75 |
13.55 |
10000*2400*2500 |
1 |
|
CRS-60 |
160 m³/d |
PURE-100 |
400 |
4 |
27.75 |
16.55 |
12000*2400*2500 |
1 |
|
CRS-200 |
200 m³/d |
PURE-100 |
500 |
5 |
30.85 |
18.25 |
7000*2400*2500 |
2 |
|
CRS-240 |
240 m³/d |
PURE-100 |
600 |
6 |
38.9 |
23.2 |
8500*2400*2500 |
2 |
|
CRS-320 |
320 m³/d |
PURE-100 |
800 |
8 |
38.9 |
23.2 |
10000*2400*2500 |
2 |
|
CRS-400 |
400 m³/d |
PURE-100 |
1000 |
10 |
30.35 |
15.75 |
11500*2400*2500 |
2 |
|
CRS-480 |
480 m³/d |
PURE-100 |
1200 |
12 |
33.65 |
15.9 |
13500*2400*2500 12000*2400*2500 |
1 1 |
|
CRS-560 |
560 m³/d |
PURE-100 |
1400 |
14 |
43.85 |
21 |
8500*2400*2500 |
3 |
|
CRS-640 |
640 m³/d |
PURE-100 |
1600 |
16 |
41.85 |
20 |
11500*2400*2500 |
3 |
|
CRS-720 |
720 m³/d |
PURE-100 |
1800 |
18 |
54.85 |
26 |
12000*2400*2500 |
3 |
