High efficiency flotation process in wastewater treatment for papermaking
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 pcs per month |
|
Detail Information |
|||
| Product Name: | Dissolved Air Flotatio | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 80-800m³/h | ||
| High Light: | daf system water treatment,dissolved air flotation for water clarification |
||
Product Description
High efficiency flotation process in wastewater treatment for papermaking
Specifications:
|
Type size |
Treatment capacity |
Diameter (mm) |
Drive motor consumption |
Air compressor consumption (kw) |
Pump power consumption (kw) |
Skimmer power consumption (kw) |
|
SSC-80 |
80m³/h |
5000 |
1.5 |
1.5 |
7.5 |
1.1 |
|
SSC-100 |
100m³/h |
6000 |
1.5 |
2.2 |
15 |
1.1 |
|
SSC-150 |
150m³/h |
7000 |
1.5 |
2.2 |
15 |
1.1 |
|
SSC-200 |
200m³/h |
8000 |
2.2 |
4 |
22 |
1.5 |
|
SSC-250 |
250m³/h |
9000 |
2.2 |
4 |
22 |
1.5 |
|
SSC-300 |
300m³/h |
10000 |
2.2 |
5.5 |
30 |
1.5 |
|
SSC-400 |
400m³/h |
11000 |
2.2 |
5.5 |
37 |
1.5 |
|
SSC-500 |
500m³/h |
12000 |
3 |
7.5 |
45 |
2.2 |
|
SSC-600 |
600m³/h |
13000 |
3 |
7.5 |
45 |
2.2 |
|
SSC-700 |
700m³/h |
14000 |
3 |
7.5 |
55 |
2.2 |
|
SSC-800 |
800m³/h |
15000 |
3 |
11 |
75 |
2.2 |
Description:

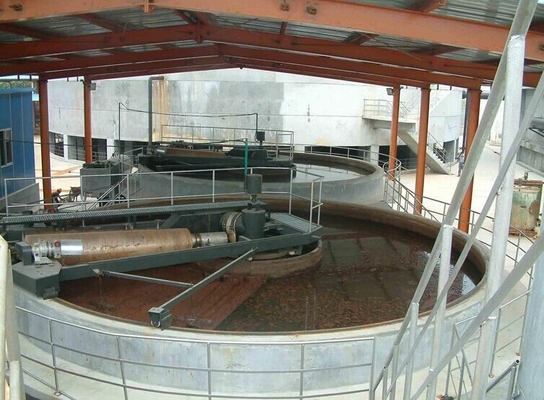

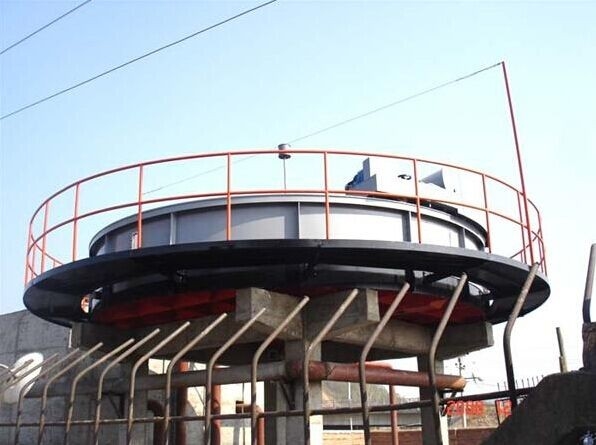

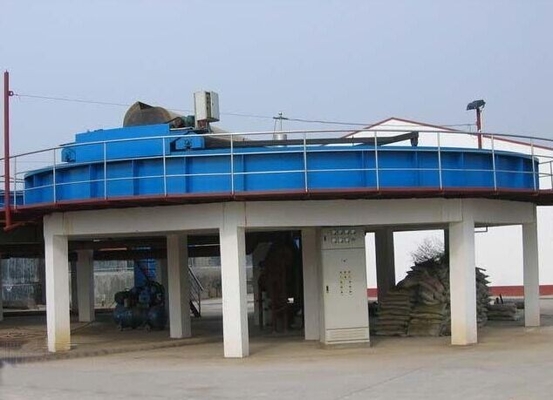

Super efficiency shallow air flotation is an advanced flotation system. “Zero velocity water distribution” and “shallow tank” theory allow the perfect clarification with minimum hydraulic turbulence in the tank.
Different from the traditional flotation unit, the raw water inlet and clean water outlet are designed to be movable. When the raw water flow into the tank, the water distribution pipe move on the opposite direction, the relative velocity is almost zero, the microbubbles ( produced by the dissolved air system) in the water float up to the water surface quickly as SS flotation speed along the vertical direction, so the SS can be floated to the water surface quickly, at the meantime, the clarified water stay in place below the scum, when the water collection pipe move here, the clarified water can be outlet. Normally, the water can be clarified in 3-5 minutes.
Applications:
1. Abattoirs
2. Cheese processing
3. Container washing
4. Dairies
5. Food processing
6. Fish processing
7. Metal removal
8. Meat industry
9. Poultry processing
10. Pulp& paper
11. Small goods
12. Tanneries
13. Vegetable industries
Competitive Advantage:
|
Very shallow tank
|
Only 750-950mm |
|
Very low retention time |
Only 5-10min |
|
Very high efficiency |
Excellent solution for high flows, and high clarification efficiency with moderate polymer consumption |
|
Excellent dissolved air system |
Which has high dissolved air efficiency, and super strong anti-clogging capacity |
