Industrial DAF dissolved air flotation wastewater treatment for Fish processing
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Dissolved Air Flotation | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 1-100m³/h | Structure: | Compact Connection |
| High Light: | dissolved air flotation equipment,daf system water treatment |
||
Product Description
Specifications
|
Type |
Treatment |
Tank |
Tank |
Tank |
Pump |
Air compressor |
Skimmer |
|
SOR-1 |
1m³/h |
1400 |
550 |
1100 |
0.55 |
0.55 |
0.18 |
|
SOR-2 |
2 m³/h |
1800 |
700 |
1300 |
0.55 |
0.55 |
0.18 |
|
SOR-3 |
3 m³/h |
2800 |
800 |
1900 |
0.75 |
0.75 |
0.37 |
|
SOR-5 |
5 m³/h |
3000 |
1000 |
1900 |
1.1 |
0.75 |
0.37 |
|
SOR-10 |
10 m³/h |
4000 |
1200 |
2100 |
1.5 |
0.75 |
0.37 |
|
SOR-15 |
15m³/h |
4500 |
1500 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-20 |
20m³/h |
4500 |
1800 |
2100 |
2.2 |
0.75 |
0.37 |
|
SOR-30 |
30m³/h |
5500 |
2000 |
2100 |
3.0 |
0.75 |
0.37 |
|
SOR-40 |
40m³/h |
6000 |
2200 |
2100 |
5.5 |
0.75 |
0.37 |
|
SOR-50 |
50m³/h |
6000 |
2700 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-60 |
60m³/h |
7000 |
2800 |
2100 |
7.5 |
1.5 |
0.37 |
|
SOR-70 |
70 m³/h |
8000 |
3000 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-80 |
80m³/h |
9000 |
3200 |
2100 |
11 |
2.2 |
0.55 |
|
SOR-100 |
100 m³/h |
9000 |
3600 |
2100 |
15 |
2.2 |
0.55 |
Description:

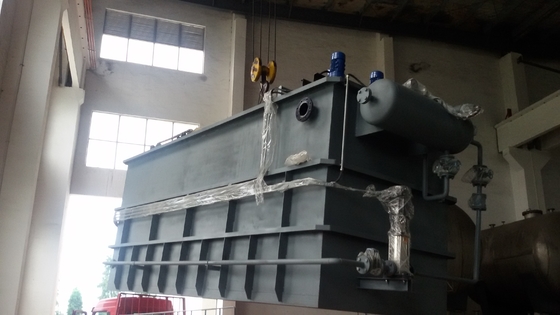

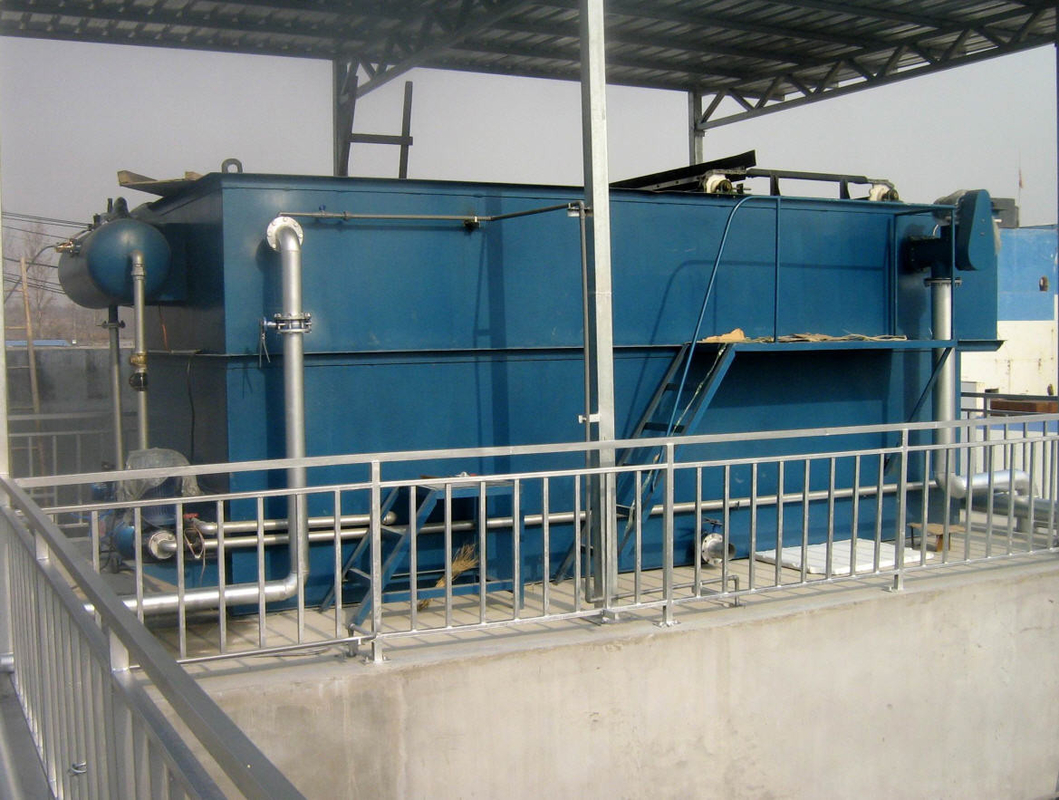

The dissolved air flotation system is a clarification process for the separation of solids, grease and oils. It works by using multiphase pump to mix water and air, then release it, producing a stream of micro-fine air bubbles that attach to solids and float them to the surface, where they can be removed by a surface scraping mechanism.
DAF is ideally suited to particles and flocs that are of neutral density, slow-settling or buoyant. This is particularly relevant to food and other industries where wastewater frequently carries large volumes of low density solids, unsuited to settling. DAF also takes up considerably less space than settling methods: generally less than 25% of the equivalent surface area is required.
For efficient separation of solids with a wide-range of densities, incorporating economy of space, DAF is the most appropriate process to employ for many trade waste applications. Our high-quality DAF system are specially engineered to suit each application. Most are constructed from stainless steel, although other materials can be used to suit unusual or highly corrosive environment.
Applications:
1. Abattoirs
2. Cheese processing
3. Container washing
4. Dairies
5. Food processing
6. Fish processing
7. Metal removal
8. Meat industry
9. Poultry processing
10. Pulp& paper
11. Small goods
12. Tanneries
13. Vegetable industries
Competitive Advantage:
|
|
Treated water from the base of the DAF is mixed with compressed air in a Dissolved |
|
|
This DAF system can be manufactured with any number of chemical reaction tanks |
|
|
This DAF system is usually supplied as skid-mounted, pre-tested units to simplify |
|
|
For ease of cleaning, this DAF system are designed with a sloping base to allow |
