Dissolved air flotation for water clarification , wastewater treatment system for Pulp and paper
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 pcs per month |
|
Detail Information |
|||
| Product Name: | Dissolved Air Flotation | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 80-800m³/h | ||
| High Light: | dissolved air flotation equipment,dissolved air flotation for water clarification |
||
Product Description

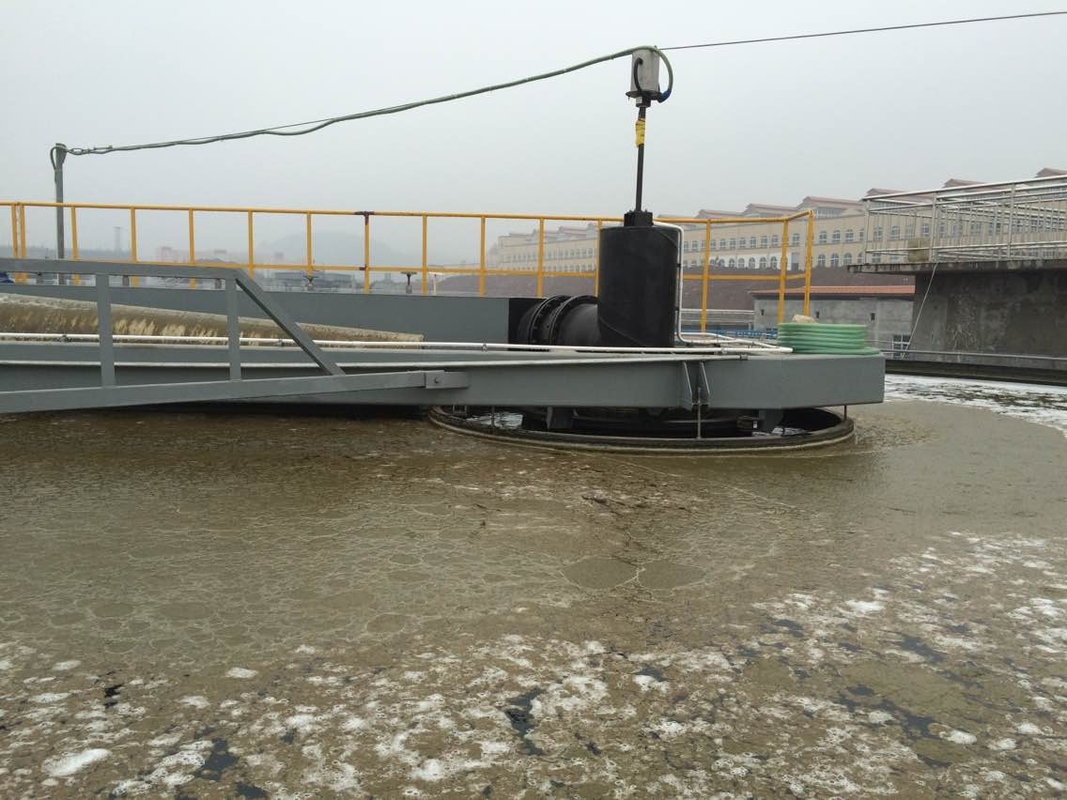

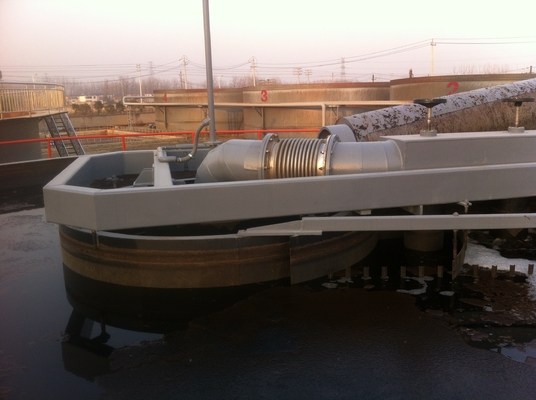

Cheneng SSC Dissolved Air Flotation Clarifier is suitable for wastewater streams containing solids, oils, and greases, which are difficult to settle or have a tendency to float. With proper chemical conditioning we remove colloidal and emulsified materials. Complete pretreatment systems can be supplied.
Features
Very shallow tank – only 750-950mm.
Very low retention time – only 5-10min.
Excellent solution for high flows.
High clarification efficiency with moderate polymer consumption.
Excellent dissolved air system, which has high dissolved air efficiency, and super strong anti-clogging capacity.
Applications
Pulp and paper
Food Processing
Chemical Processing
Textiles
Municipal
Algae Removal
Bakery Waste
Fiber Recovery
Paint Waste
Poultry Processing
Slaughter House Sewage
Specifications
|
Type size |
Treatment capacity |
Diameter (mm) |
Drive motor consumption |
Air compressor consumption (kw) |
Pump power consumption (kw) |
Skimmer power consumption (kw) |
|
SSC-80 |
80m³/h |
5000 |
1.5 |
1.5 |
7.5 |
1.1 |
|
SSC-100 |
100m³/h |
6000 |
1.5 |
2.2 |
15 |
1.1 |
|
SSC-150 |
150m³/h |
7000 |
1.5 |
2.2 |
15 |
1.1 |
|
SSC-200 |
200m³/h |
8000 |
2.2 |
4 |
22 |
1.5 |
|
SSC-250 |
250m³/h |
9000 |
2.2 |
4 |
22 |
1.5 |
|
SSC-300 |
300m³/h |
10000 |
2.2 |
5.5 |
30 |
1.5 |
|
SSC-400 |
400m³/h |
11000 |
2.2 |
5.5 |
37 |
1.5 |
|
SSC-500 |
500m³/h |
12000 |
3 |
7.5 |
45 |
2.2 |
|
SSC-600 |
600m³/h |
13000 |
3 |
7.5 |
45 |
2.2 |
|
SSC-700 |
700m³/h |
14000 |
3 |
7.5 |
55 |
2.2 |
|
SSC-800 |
800m³/h |
15000 |
3 |
11 |
75 |
2.2 |
