Biological Compact MBR Wastewater Treatment 720m3/D ISO Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | MBR Package Treatment Plant | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 25-720m³/d | Structure: | Compact Connection |
| High Light: | MBR Wastewater Treatment 720m3/D,MBR Wastewater Treatment 720m3/D,Biological MBR Wastewater Treatment |
||
Product Description
MBR wastewater treatment , membrane water treatment plant 25 - 720m³/d

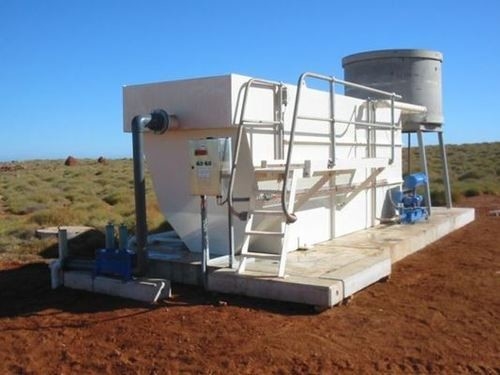

A Package sewage treatment plant is a completely self contained system for sewage treatment that is 'plug & play' and should incorporate the following elements in one outer tank; Include adequate primary and final settlement/clarification. Adequate biological treatment. Sludge Storage, preferably at least 3 months
Mbr is one kind of high technology that is combination of membrance seperation with the tradtional processing of mud. This tech can improve the efficiency of the speration of mud and water and raise the reacting rate of the biochemical because of density increasement of tech can great low down the quantity of the mud so basically solve the problems of the traditional processing including much mud, big size of land and low running efficiency so on.
Specifications:
|
Type size |
Treatment capacity |
Membrane size |
Qty (pcs) |
Module (units) |
Total Installed power |
Operating power (KW) |
Tank size(mm) |
No.s of tank |
|
CRS-25 |
25 m³/d |
PURE-100 |
80 |
1 |
7.8 |
3.35 |
9000*2400*2500 |
1 |
|
CRS-40 |
40 m³/d |
PURE-100 |
100 |
1 |
7.8 |
3.35 |
7000*2400*2500 |
1 |
|
CRS-50 |
50 m³/d |
PURE-100 |
160 |
2 |
9.75 |
5.25 |
9000*2400*2500 |
1 |
|
CRS-80 |
80 m³/d |
PURE-100 |
200 |
2 |
13.8 |
5.25 |
10000*2400*2500 |
1 |
|
CRS-100 |
100 m³/d |
PURE-100 |
140 |
3 |
19.9 |
10.7 |
10000*2400*2500 |
1 |
|
CRS-120 |
120 m³/d |
PURE-100 |
300 |
3 |
21.75 |
13.55 |
10000*2400*2500 |
1 |
|
CRS-160 |
160 m³/d |
PURE-100 |
400 |
4 |
27.75 |
16.55 |
12000*2400*2500 |
1 |
|
CRS-200 |
200 m³/d |
PURE-100 |
500 |
5 |
30.85 |
18.25 |
7000*2400*2500 |
2 |
|
CRS-240 |
240 m³/d |
PURE-100 |
600 |
6 |
38.9 |
23.2 |
8500*2400*2500 |
2 |
|
CRS-320 |
320 m³/d |
PURE-100 |
800 |
8 |
38.9 |
23.2 |
10000*2400*2500 |
2 |
|
CRS-400 |
400 m³/d |
PURE-100 |
1000 |
10 |
30.35 |
15.75 |
11500*2400*2500 |
2 |
|
CRS-480 |
480 m³/d |
PURE-100 |
1200 |
12 |
33.65 |
15.9 |
13500*2400*2500 12000*2400*2500 |
1 1 |
|
CRS-560 |
560 m³/d |
PURE-100 |
1400 |
14 |
43.85 |
21 |
8500*2400*2500 |
3 |
|
CRS-640 |
640 m³/d |
PURE-100 |
1600 |
16 |
41.85 |
20 |
11500*2400*2500 |
3 |
|
CRS-720 |
720 m³/d |
PURE-100 |
1800 |
18 |
54.85 |
26 |
12000*2400*2500 |
3 |
Appication Range
Building water reusage
Hospital sewage processing
Carwashing sewage processing
Dirty sewage processing
High density organic sewage processing
Sewage processing from rubbish and fertilizing
Light pollution water purifying
