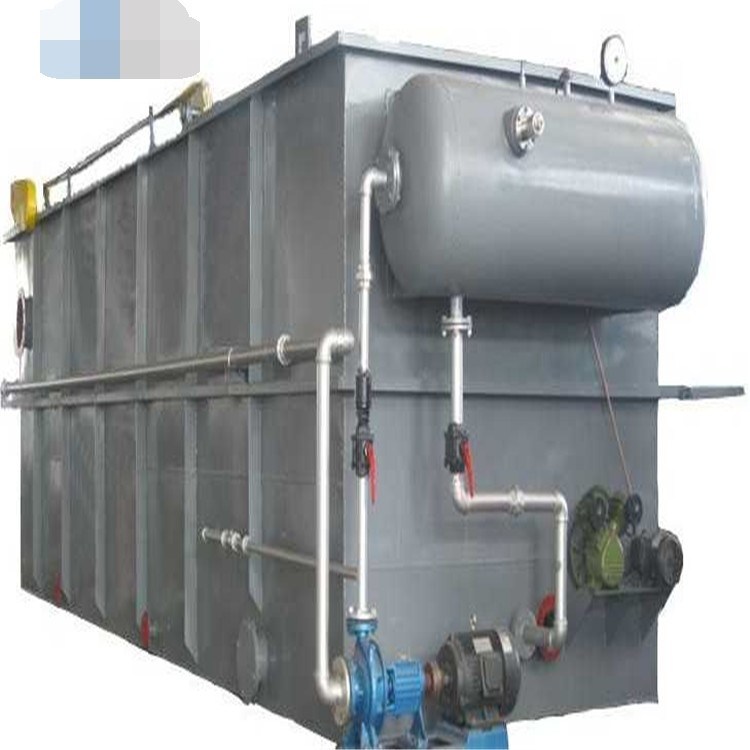

500m3/H Suspended Dissolved Air Flotation Tank 30 Microns
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | ORF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Cavitation Air Flotation | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Function: | Producing Fresh Water |
| Capacity: | 1-500m³/h | Size: | Customized Water Tank |
| High Light: | 500m3/h dissolved air flotation tank,Cavitation dissolved air flotation tank,30 microns suspended Air Flotation |
||
Product Description
Stainless Steel 304 Dissolved Air Flotation Equipment For Industrial Wastewater Treatment
Adantage
1. Pump pressurized mix within.Gas to liquid efficient dissolving, small bubbles than 30 um
2. Low voltage operation, the dissolved gas efficiency is as high as 99%.
3. Tiny bubbles and suspended particles of efficient absorption, improve the SS remove effect
4. Dissolved gas water dissolving efficiency 80-100%. Than traditional dissolved gas floating high efficiency three times.
5. Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.
III. CAF Specification
|
Type |
Treatment |
Tank |
Tank |
Tank |
Aerator |
Skimmer |
|
ORF-1 |
1m³/h |
1400 |
550 |
1100 |
0.37 |
0.18 |
|
ORF-3 |
3 m³/h |
2500 |
800 |
1300 |
1.5 |
0.37 |
|
ORF-5 |
5 m³/h |
2500 |
1000 |
1300 |
1.5 |
0.37 |
|
ORF-10 |
10 m³/h |
3000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-15 |
15 m³/h |
4000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-20 |
20m³/h |
5000 |
1200 |
1300 |
2.2 |
0.37 |
|
ORF-30 |
30m³/h |
5000 |
1600 |
1800 |
2.2 |
0.37 |
|
ORF-40 |
40m³/h |
6000 |
1600 |
1800 |
2.2 |
0.37 |
|
ORF-50 |
50m³/h |
6000 |
1800 |
1800 |
4.4 |
0.37 |
|
ORF-75 |
75m³/h |
7000 |
2400 |
1800 |
4.4 |
0.55 |
|
ORF-100 |
100m³/h |
8000 |
2400 |
1800 |
4.4 |
0.55 |
|
ORF-150 |
150 m³/h |
11500 |
2400 |
1800 |
6 |
0.55 |
|
ORF-200 |
200m³/h |
15000 |
2400 |
1800 |
9 |
0.55 |
|
ORF-300 |
300 m³/h |
15000 |
3100 |
1800 |
12 |
0.55 |
|
ORF-400 |
400m³/h |
17000 |
3600 |
1800 |
12 |
0.55 |
|
ORF-500 |
500m³/h |
21000 |
4500 |
1800 |
15 |
1.10 |
Specifications
1. Stable treatment effect
2. High efficient
3. Small footprint
4. Low energy consumption
5. Long life and good quality
Features
1 Small footprint, Low energy consumption; Easy operation; Simple management;
2 Efficient dissolved air; Stable treatment effect ; Full-automatic operation;
3 GFA Type Dissolved Air Systerm is used in this device. It has ingenious structure, and its efficiency of dissolving air is as high as 90%. But its volume is only one-fifth of the other kind of dissolved air system. In addition, it still has the super anti-clogging ability which is incomparable;
4 Release effect and the mean diameter of microbubble is only between 15 to 30 microns. In addition that,this kind of dissolved air releasers also has the self-cleaning ability;
5 This device also applies GLG Type Chained Scum Skimmer, works Smooth and reliably and skims scum efficiently.
