ISO9001 DAF Dissolved Air Flotation Equipment Ingenious Structure
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENENG |
| Certification: | ISO9001 |
| Model Number: | NAUTILUS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 20000-100000 set |
| Packaging Details: | Naked |
| Delivery Time: | 30-35 work days |
| Payment Terms: | L/C, D/A, , D/P, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| DAF Material: | Stainless Steel 304 | Core Components: | PLC |
|---|---|---|---|
| Control: | Electric Auto Control (PLC Siemens) | High TSS Removal Efficiency: | 96%~99% |
| High Hydraulic Load: | Up To 80m3/(m2.h) | High Sludge Load: | Up To 70kg/(m2.h) |
| Small Footprint: | 1/5 Of Conventional DAF | High Sludge Concentration: | Up To 5% Solid Content |
| High Light: | GFA daf dissolved air flotation Equipment,ISO9001 daf dissolved air flotation system,ISO9001 dissolved air flotation Unit |
||
Product Description

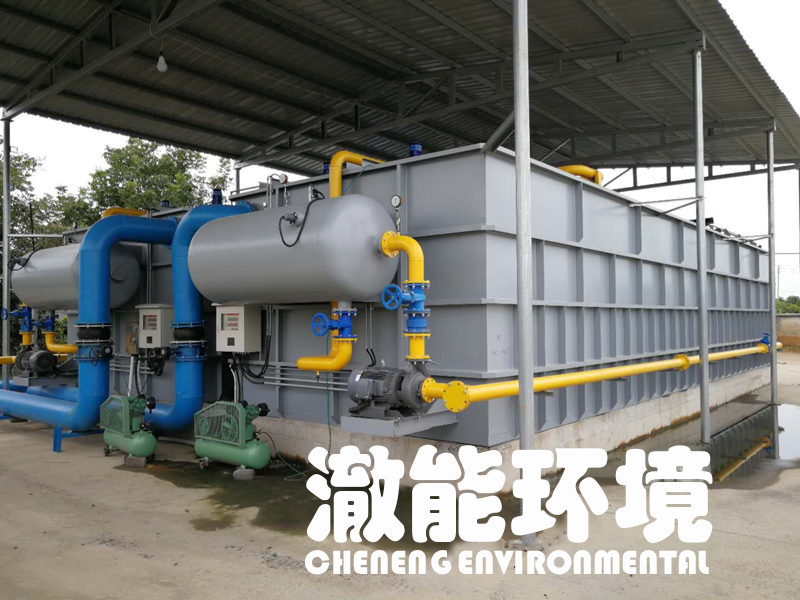

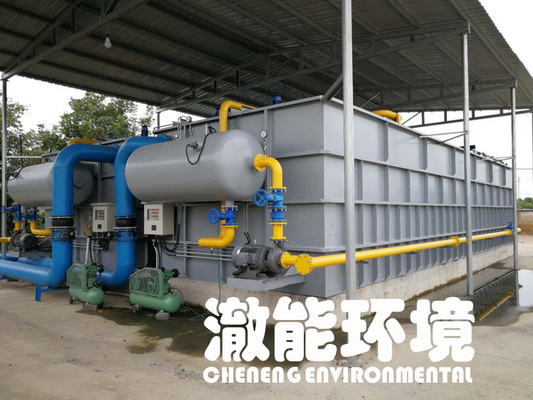

Industry Wastewater Treatment Plant DAF Dissolved Air Flotation
Features
1 Small footprint, Low energy consumption; Easy operation; Simple management;
2 Efficient dissolved air; Stable treatment effect ; Full-automatic operation;
3 GFA Type Dissolved Air Systerm is used in this device. It has an ingenious structure, and its efficiency of dissolving air is as high as 90%. But its volume is only one-fifth of the other kind of dissolved air system. In addition, it still has the super anti-clogging ability which is incomparable;
4 Release effect and the mean diameter of microbubble is only between 15 to 30 microns. In addition that,this kind of dissolved air releasers also has the self-cleaning ability;
5 This device also applies GLG Type Chained Scum Skimmer, works Smooth and reliably and skims scum efficiently.
Dissolved air flotation (DAF) is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms micro or nano bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved air flotation Specifications:
- High TSS removal efficiency: 96%~99%
- High hydraulic load: up to 80m3/(m2.h)
- High sludge load: up to 70kg/(m2.h)
- Small footprint: 1/5 of conventional DAF
- Less energy and chemical consumption
- High sludge concentration: up to 5% solid content
Dissolved air flotation machine package wastewater treatment plant is a water treatment process that clarifieswastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemicaland chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities
Company Introduction:
WUXI CHENENG ENVIRONMENTAL ENGINEERING EQUIPMENT CO.,LTD is a supplier of equipment and solutions for potable water, process water, and industrial and municipal wastewater applications. We design, fabricate and assemble the products, and sell into the municipal wastewater and industrial wastewater treatment market.
