Electromechanical 30μM Particle DAF Filter Treatment System For Petrochemical
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENENG |
| Certification: | ISO9001 |
| Model Number: | NAUTILUS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 20000-100000 set |
| Packaging Details: | Naked |
| Delivery Time: | 30-35 work days |
| Payment Terms: | L/C, D/A, , D/P, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| DAF Material: | Stainless Steel 304 | Core Components: | PLC |
|---|---|---|---|
| Control: | Electric Auto Control (PLC Siemens) | High TSS Removal Efficiency: | 96%~99% |
| High Hydraulic Load: | Up To 80m3/(m2.h) | High Sludge Load: | Up To 70kg/(m2.h) |
| Small Footprint: | 1/5 Of Conventional DAF | High Sludge Concentration: | Up To 5% Solid Content |
| High Light: | electromechanical daf filter system,30μm daf filter system,electromechanical DAF treatment system |
||
Product Description

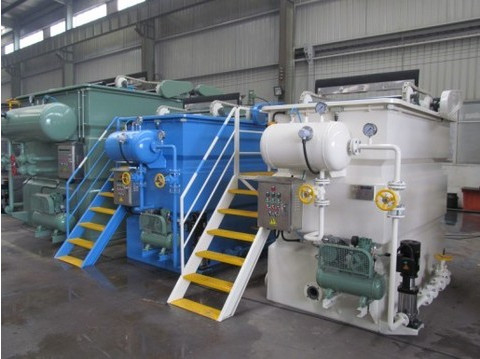

Stainless steel dissolved air flotation for oil waste water treatment
Main Features
A. Small footprint, lower energy consumption, easy operation and simple management
B. High and stable efficiency with electromechanical integrated control
C. Its unique dissolved air system with delicate structure can progress over90% of dissolved air efficiency with stronger anti-clogging ability underIts own numerous patent
D. New advanced air releaser with 15~30 μm average particle andauto flushing function.
E. It adopts chain-plate skimmer with stable operation and high efficiency.
Dissolved air flotation (DAF) is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms micro or nano bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved air flotation Specifications:
- High TSS removal efficiency: 96%~99%
- High hydraulic load: up to 80m3/(m2.h)
- High sludge load: up to 70kg/(m2.h)
- Small footprint: 1/5 of conventional DAF
- Less energy and chemical consumption
- High sludge concentration: up to 5% solid content
Dissolved air flotation machine package wastewater treatment plant is a water treatment process that clarifies wastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles that adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemical and chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities
Company Introduction:
WUXI CHENENG ENVIRONMENTAL ENGINEERING EQUIPMENT CO.,LTD is a supplier of equipment and solutions for potable water, process water, and industrial and municipal wastewater applications. We design, fabricate and assemble the products, and sell into the municipal wastewater and industrial wastewater treatment market.
