Carbon Steel Oil Refineries DAF Dissolved Air Flotation For Fiber Recovery
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENENG |
| Certification: | ISO9001 |
| Model Number: | NAUTILUS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 20000-100000 set |
| Packaging Details: | Naked |
| Delivery Time: | 30-35 work days |
| Payment Terms: | L/C, D/A, , D/P, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Material: | Carbon Steel Anticorrotion | Footprint: | Small |
|---|---|---|---|
| Efficiency: | High | Capacity: | 10-5000 M3/d |
| Function: | Removing COD BOD NH-N | ||
| High Light: | Dissolved Air Flotation for fiber recovery,carbon steel Dissolved Air Flotation,oil refineries daf unit |
||
Product Description

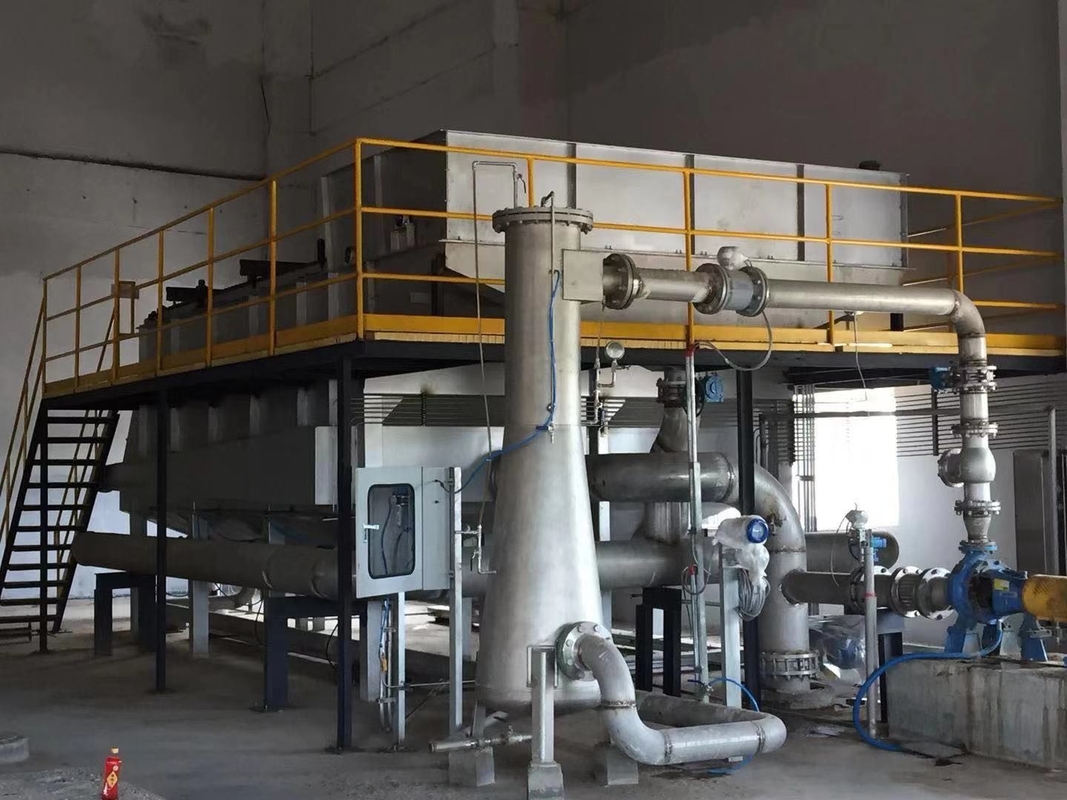

Nautilus model DAF is an innovation DAF clarifier unit, which is an update solution for pulp&paper, oil&gas, seawater
desalination and municiple wastewater treatment.
Dissolved air flotation Introduction:
Dissolved air flotation (DAF) is one of the most versatile and effective process in water, wastewater treatment and desalination. ... In several ocassions, dissolved air flotation system is installed at the beginning of the water treatment process, immediately after the pretreatment to remove fat and grease.
Dissolved air flotation Specifications:
- High TSS removal efficiency: 96%~99%
- High hydraulic load: up to 80m3/(m2.h)
- High sludge load: up to 70kg/(m2.h)
- Small footprint: 1/5 of conventional DAF
- Less energy and chemical consumption
- High sludge concentration: up to 5% solid content

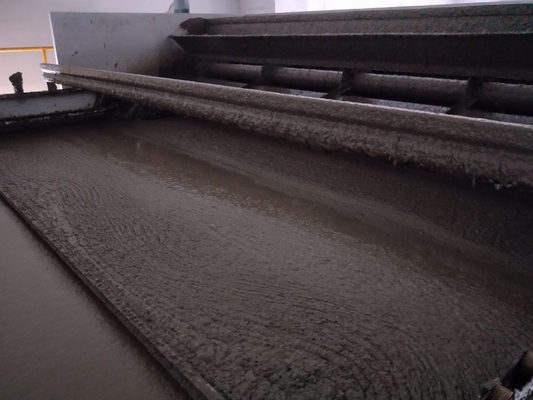

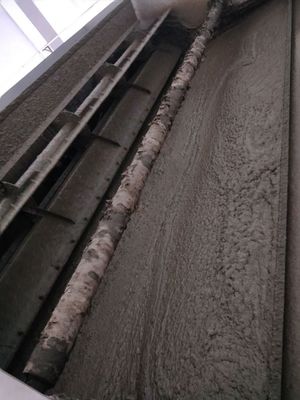

Dissolved air flotation machine package wastewater treatment plant is a water treatment process that clarifieswastewaters (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemicaland chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities.
Company Introduction:
WUXI CHENENG ENVIRONMENTAL ENGINEERING EQUIPMENT CO.,LTD is a supplier of equipment and solutions for potable water, process water, and industrial and municipal wastewater applications. We design, fabricate and assemble the products, and sell into the municipal wastewater and industrial wastewater treatment market.
