Container Mobile Dissolved Air Floatation Equipment , Water Treatment Daf Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | Dissolved Air Flotation | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Power: | 9.37kw |
| Capacity: | 1-100m³/h | Weight: | 5200kg |
| High Light: | dissolved air flotation equipment,dissolved air flotation for water clarification |
||
Product Description

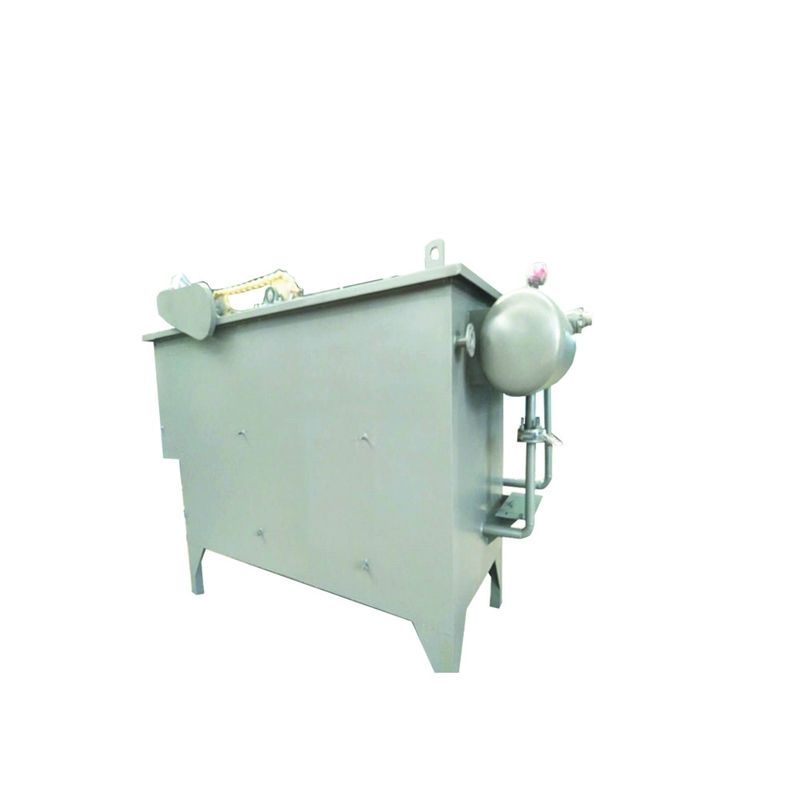

Container mobile dissolved air flotation equipment
The utility model relates to a container skid-mounted air floated sewage treatment device, which is characterized in that the device comprises a sewage lifting system, a dosing mixing system, an air floated sewage treatment system, an oil pollution discharge system, a water discharge system, an electronic control device, a container, and the air floated lifting system is connected with a dosing mixing system and an outlet of a dosing mixing system is connected with an air floatation. The bottom end of the air floated sewage treatment system is connected with the oil pollution discharge system and the top end is connected with the water outlet system. A door, a sewage interface, a clean water interface, an oil pollution outlet and an air floated water interface are arranged on the outer shell of the container. The above-mentioned equipment and related pipelines are controlled by an electric control device, and the above-mentioned equipment and distribution control are controlled. The system and related pipe lines are installed on the prizing seat and installed in the container. The container skid-mounted air flotation sewage treatment device has the advantages of low investment, small occupation area, rapid reaction, convenient movement, high automation, energy saving and environmental protection. It is especially suitable for solving the problem of oily sewage treatment in small oilfields and remote oilfields. The treated oily sewage can reach the A3 index of oilfield reinjection water quality.
Quick Details
Product name: Container mobile dissolved air flotation equipment
Color: Black,blue,green
Material: carbon steel
Weight: 5200kg
Shape size: 13800*2800*2800
Application: Water Purification
Type: Advection gas floatation machine
Working pressure: 30mpa
Shape: Rectangle
Power: 9.37kw
| Model | Capacity(m³/h) | Tank length(mm) | Tank width(mm) | Tank depth(mm) | Pump(kw) | Air compressor(kw) | Skimmer(kw) |
| SOR-1 | 0.5-1m³/h | 1500 | 955 | 1063 | 0.55 | 0.55 | 0.18 |
| SOR-3 | 2-3m³/h | 3000 | 2100 | 2300 | 0.75 | 0.55 | 0.37 |
| SOR-5 | 3-5m³/h | 3200 | 2300 | 2300 | 1.1 | 0.55 | 0.37 |
| SOR-10 | 5-10m³/h | 4200 | 2500 | 2500 | 1.5 | 0.75 | 0.37 |
| SOR-15 | 10-15m³/h | 4700 | 2800 | 2500 | 2.2 | 0.75 | 0.37 |
| SOR-20 | 15-20m³/h | 4700 | 3100 | 2500 | 2.2 | 0.75 | 0.37 |
| SOR-30 | 20-30m³/h | 5700 | 3400 | 2500 | 3.0 | 0.75 | 0.37 |
| SOR-40 | 30-40m³/h | 7200 | 3300 | 2500 | 5.5 | 0.75 | 0.37 |
| SOR-50 | 40-50m³/h | 7200 | 3800 | 2500 | 7.50 | 1.5 | 0.37 |
| SOR-60 | 50-60m³/h | 8200 | 3900 | 2500 | 7.50 | 1.5 | 0.37 |
| SOR-70 | 60-70m³/h | 9200 | 4100 | 2500 | 11.00 | 1.5 | 0.55 |
| SOR-80 | 70-80m³/h | 10200 | 4400 | 2500 | 11.00 | 1.5 | 0.55 |
| SOR100 | 80-100m³/h | 10200 | 4800 | 2500 | 15.00 | 2.2 | 0.55 |
