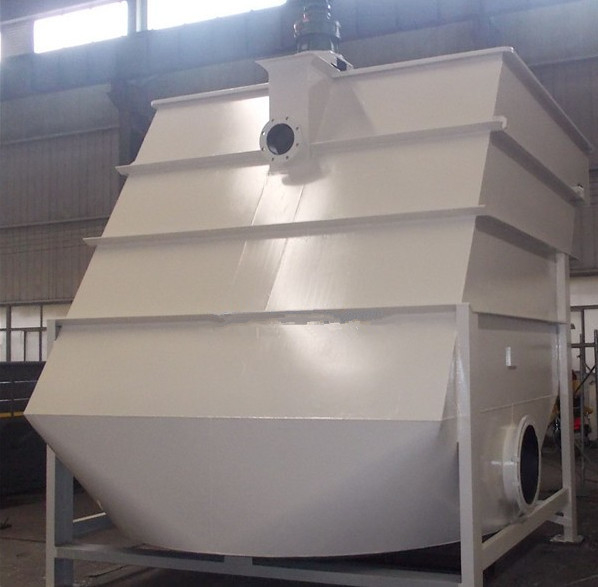

0.75KW Biological 720m3/Day Package Wastewater Sewage Treatment Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | CHENENG |
| Certification: | CE/ISO |
| Model Number: | CRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | nude packing, bulk packed in wooden cases |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs per month |
|
Detail Information |
|||
| Product Name: | MBR Package Treatment Plant | Application: | Water Treatment |
|---|---|---|---|
| Material: | CS Or SS | Standard: | ISO |
| Working Capacity: | 25-720m³/d | Structure: | Compact Connection |
| High Light: | 720m3/day Package Sewage Treatment Plant,0.75KW Package Sewage Treatment Plant,720m3/day package wastewater treatment plant |
||
Product Description
Package Sewage Treatment Plant for Domestic Sewage and Industrial Wastewater
1) 0.05 micro membrane filtering outlet water, the effluent water suspended solid and turbidity can close to zero, can be reuse directly.
2) Compare to traditional treatment system, it can save 50% land usable area;
4) The micro-organism concentration in bio-reactor can reach 5000-8000 mg/L, with high biochemistry efficiency, strong impact resistance.
5) System with high automation degree, adopt PLC control, can realize whole automatic control;
| Production Capacity | 20units/Month |
| Payment Terms | L/C, T/T |
| Method | Biological Treatment |
| Usage | Industrial, Home, Hospital, Hotel, Hospital |
| Product Name | Package Sewage Treatment Plant |
| Treatment Capacity | 0.5-40m3/H |
| Color | According to Customer′s Requirements |
| Material | Carbon Steel, Ss, Gfrp |
1. Screen channel
Install Manual screen or mechanical bar screen in the screen channel,they can remove large particles in the waste water,such as plastic bag,Pericarp,Remnant,etc.
2. Equilization tank
This tank is used to adjust the wastewater quantity and quality in different time,make sure the inffluent water have the same quality,which will better for the following treatment.
3. Anoxic tank
The anoxia tank use anaerobic bacteria to hydrolysis, acidate and methanated the COD and BOD. Remove organic matter in waste water, and improve the biodegradability of sewage, is conducive to the subsequent aerobic treatment.
4. MBR bio-reaction tank
MBR bio-reaction tank and aerobic tank can be combined together.The role of aerobic tank is to make activated sludge to take on aerobic respiration,further decomposition of organic matter into inorganic matter.MBR bio-reaction tank trap activated sludge and other matters,clean water will be suck out by sucking pump.
5. Sludge tank
there are set sludge collecting hopper and sludge pipeline in sludge tank bottom, in order to convenient for sludge concentration, set weir water tank in top, there open mud discharge inlet in bottom, rely on static pressure automatic discharge mud.
